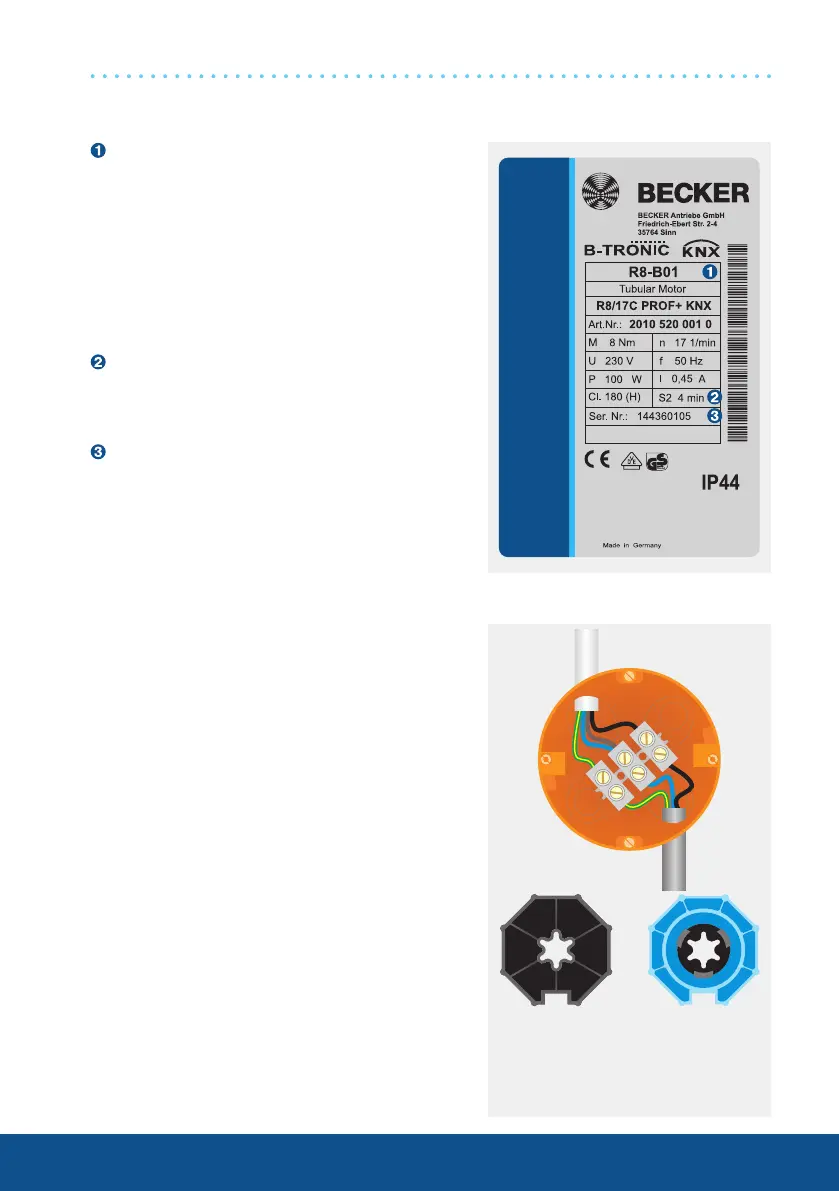

Type plate
Type designation: e.g. R8-B01
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
8 Rated torque
B B-Tronic radio drive
01 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 14 43 60105
14 Year 2014
43 Calendar week
60105 Consecutive number
B01 drives
Wiring
Drives with electronic limit switching and
integrated radio receiver are connected
directly to the power supply. The brown wire
and the blue wire together are connected to
the neutral wire.
For the sensitive obstacle detection to be
active, the drive adapter with object detection
must be mounted on the drive.
Mains
Drive
Drive adapter with
obstacle detection
Drive adapter
