Operating principle: Single, group and central control
unit configuration
Centronic radio technology
Each radio receiver has one storage space for a master transmitter and 15 storage
spaces for additional transmitters.
The master transmitter is programmed in the receiver via the radio programming but-
ton/radio switch or by switching on the power. All other transmitters are programmed
in the receiver using the master transmitter. Programming one transmitter on several
drives enables the creation of a group/central transmitter.

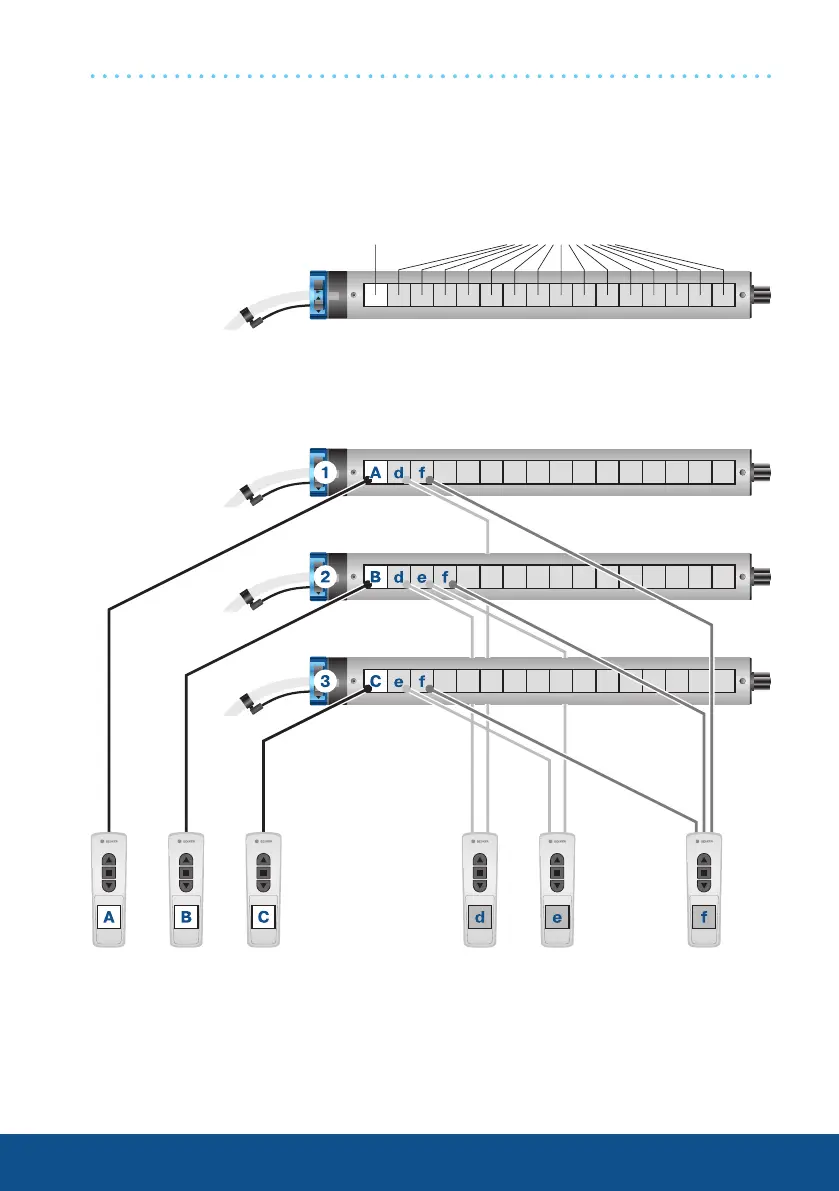

Example:
Single transmitter A (master transmitter) controls drive 1
Single transmitter B (master transmitter) controls drive 2
Single transmitter C (master transmitter) controls drive 3
Group transmitter d controls drive 1 and 2
Group transmitter e controls drive 2 and 3
Central transmitter f controls drive 1, drive 2 and drive 3
Master transmitter 15 additional transmitters
Single (Master) Group Central
