E14 drives

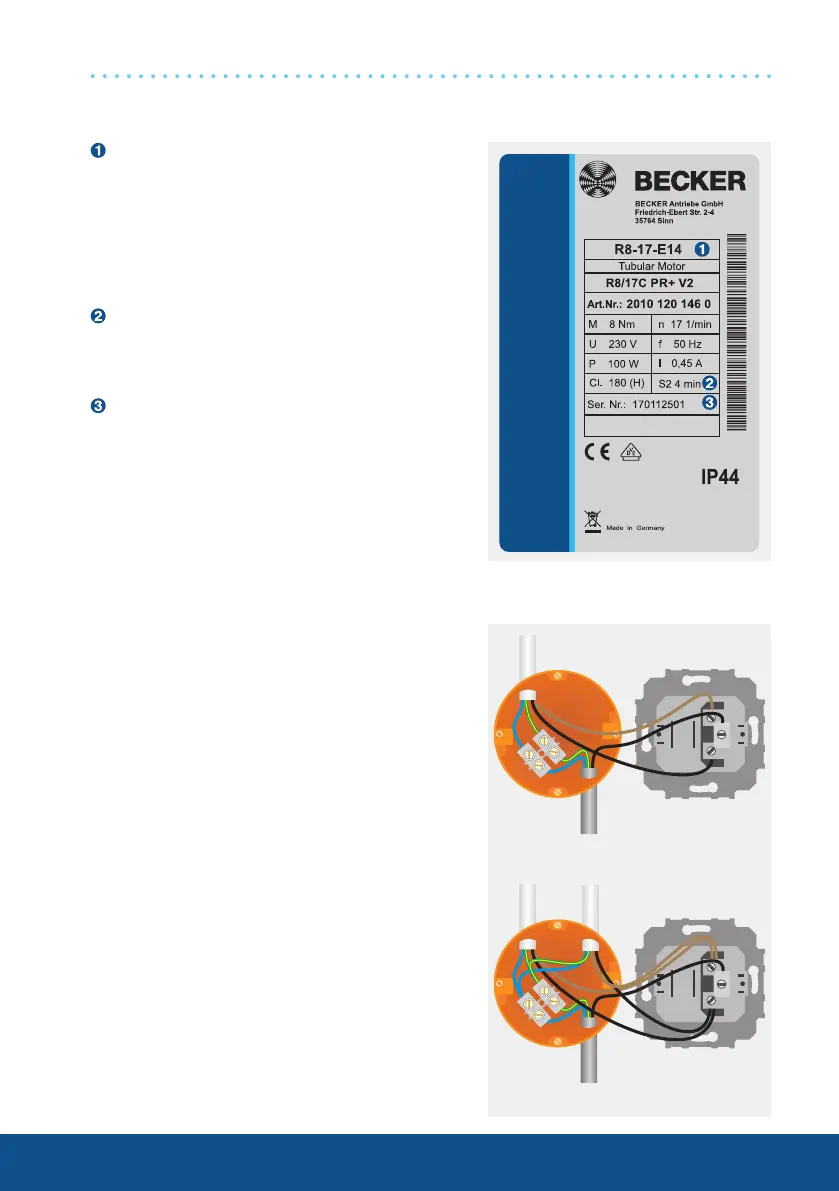

Type plate
Type designation: e.g. R8-17-E14
R Size of drive
(tube diameter)
R - 45 mm
8-17 Rated torque/output speed
E Electronic limit switch
14 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 170112501
17 Year 2017
01 Calendar week
12501 Consecutive number
Wiring
Two or more drives with electronic limit
switching can be connected in parallel to
a control point. The maximum number of
synchronously controlled drives depends on
the respective current consumption, but must
not exceed 5.
The changeover time for switching the
running direction must be at least 0.5 seconds.
The switch and controls must not execute
simultaneous UP and DOWN commands.
Mains
Drive
Drive 2Drive 1
Mains
