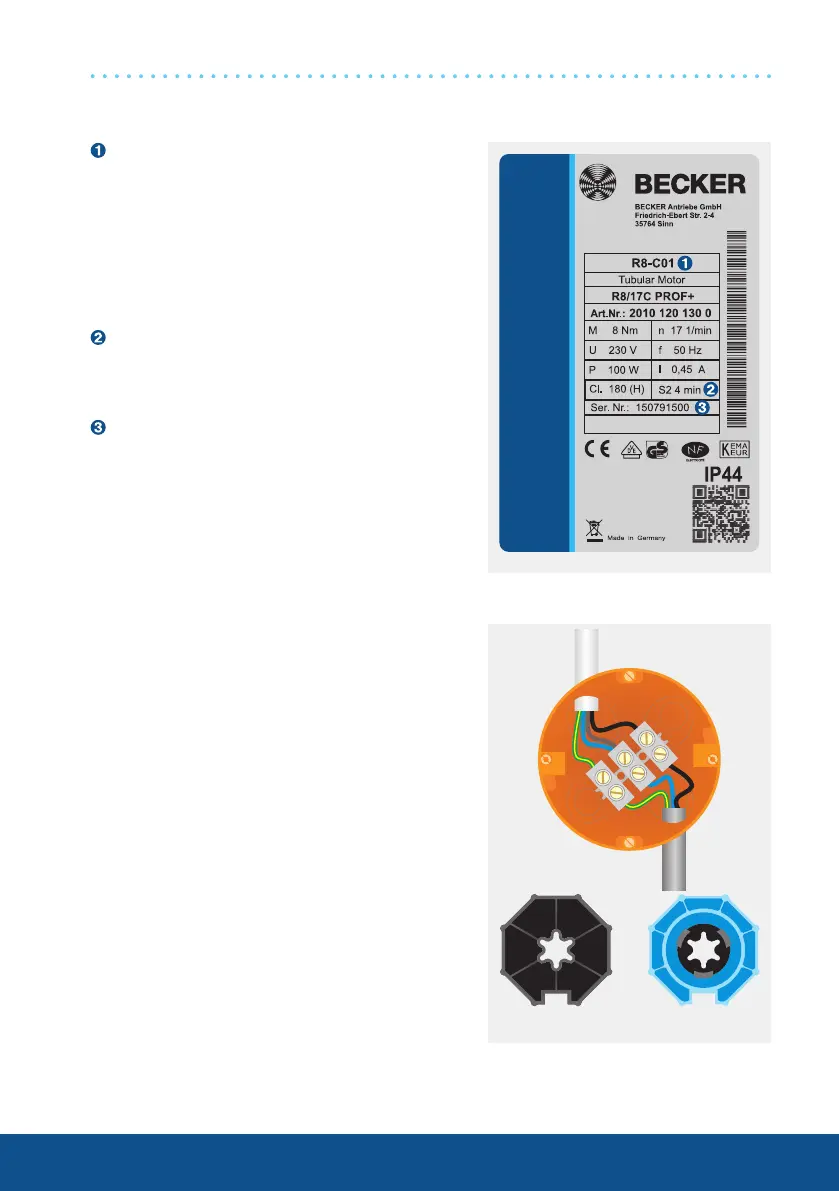

Type plate
Type designation: e.g. R8-C01
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
8 Rated torque
C Centronic remote control
01 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 15 07 91500
15 Year 2015
07 Calendar week
91500 Consecutive number
Wiring
Drives with electronic limit switching and inte-
grated radio receiver are connected directly to
the power supply. The brown wire and the blue
wire together are connected to the neutral wire.
C01 drives
For the sensitive obstacle detection to be
active, the drive adapter with object detection
must be mounted on the drive.
Mains
Drive
Drive adapter with
obstacle detection
Drive adapter
