22

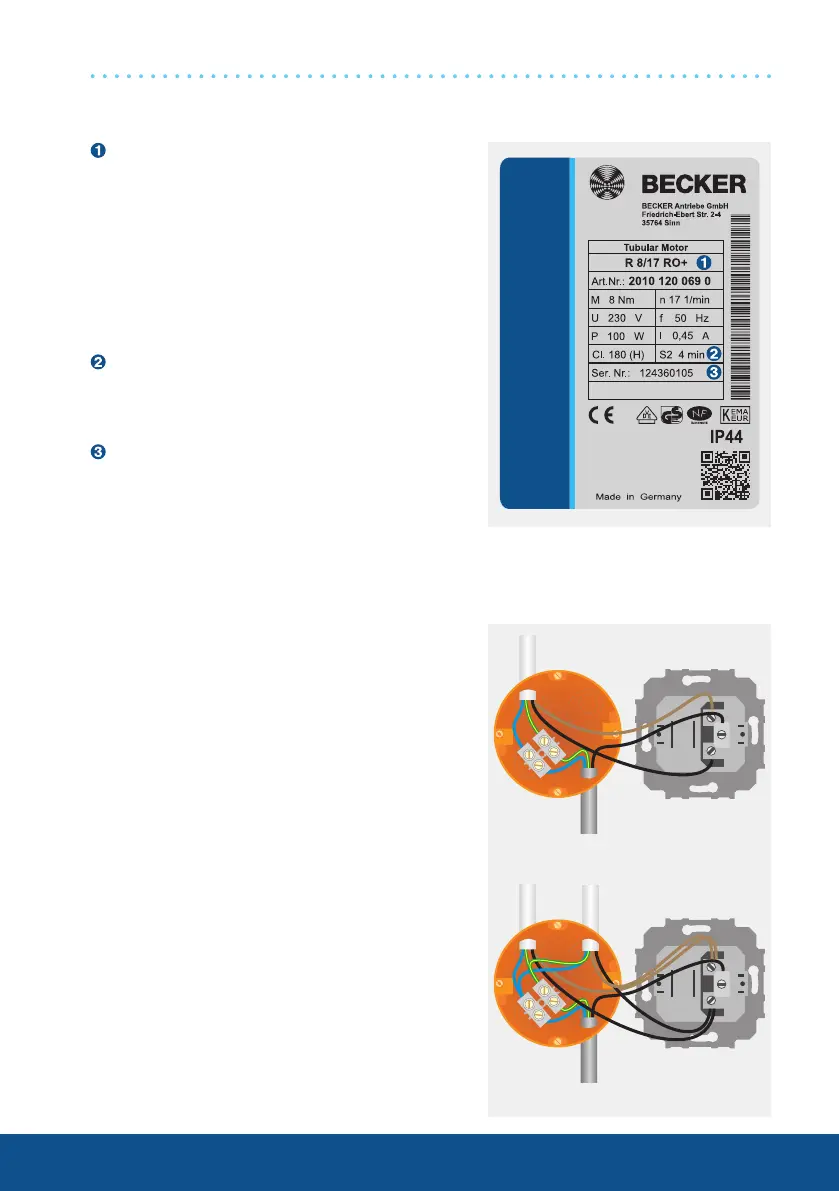

Type plate
Type designation: e.g. R 8/17RO+
R Size of drive
(tube diameter)
R - 45 mm
8/17 Rated torque/output speed
R Electronic limit switching for roller
shutters
O Sensitive obstacle detection
+ Suitable for anti-lifting device
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 12 43 60105
12 Year 2012
43 Calendar week
60105 Consecutive number
Wiring
Two or more drives with electronic limit
switching can be connected in parallel to
a control point. The maximum number of
synchronously controlled drives depends on
the respective current consumption, but must
not exceed 5.
The changeover time for switching the
running direction must be at least 0.5 seconds.
The switch and controls must not execute
simultaneous UP and DOWN commands.
RO+ (E02) drives
Mains
Drive
Drive 2Drive 1
Mains
