Operating principle: Single, group and central
control unit configuration
B-Tronic radio technology

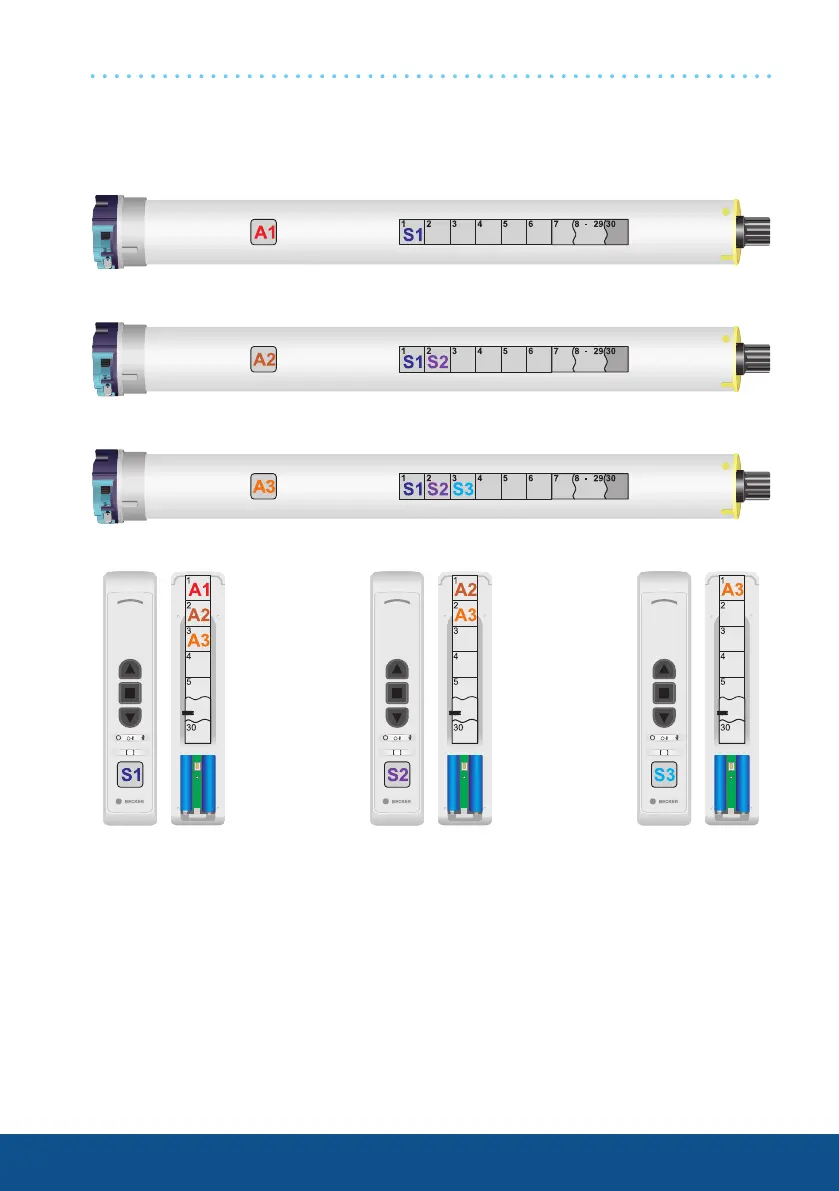

Central transmitter S1 controls drive A1, A2 and A3
Group transmitter S2 controls drive A2 and A3
Single transmitter S3 controls drive A3
The transmitter is stored in the drive memory and the drive is stored in the transmitter
memory by means of bidirectional programming (linking). This means the transmit-
ter can send drive commands to the drive and the drive can send status signals back
to the transmitter.
All drives stored in the manual transmitter can be controlled and programmed
individually in the master mode.
