14

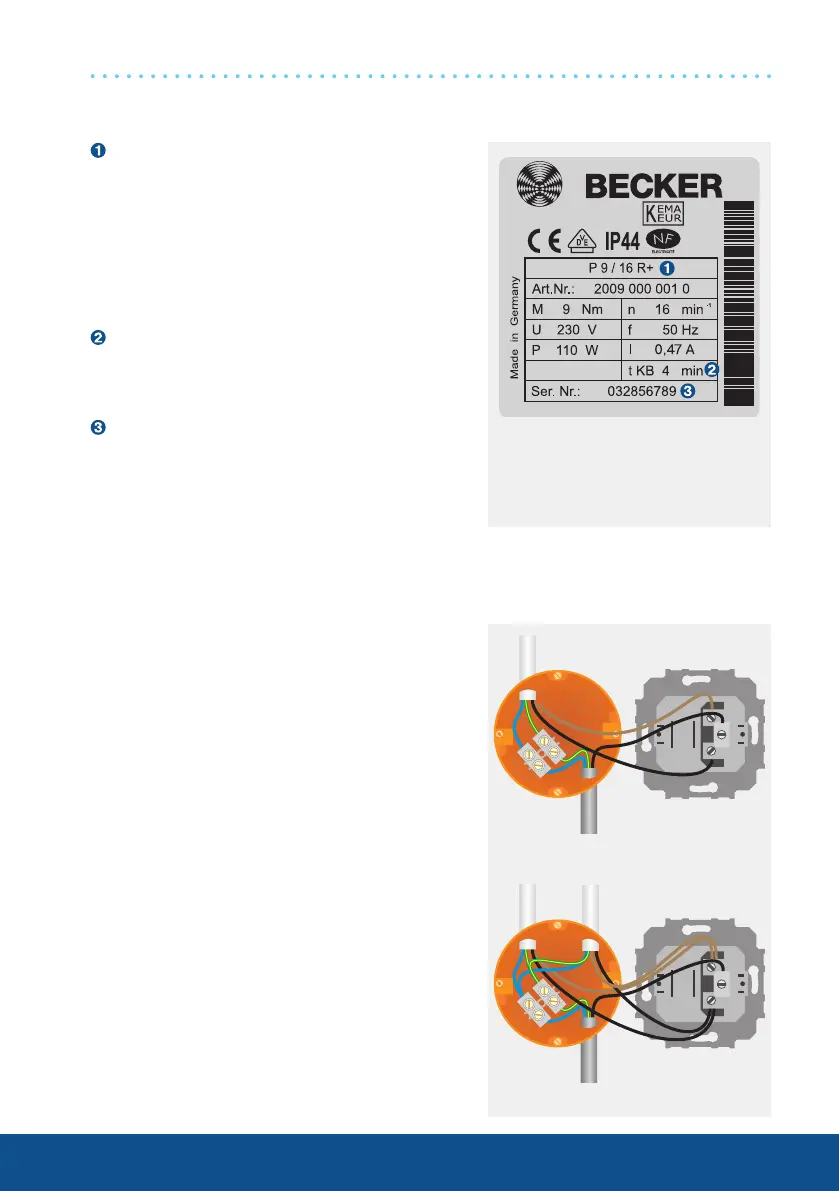

Type plate
Type designation: e.g. P 9/16 R+
P Size of drive
(tube diameter)
P - 35 mm
9/16 Rated torque/output speed
R Electronic limit switching for roller
shutters
+ Suitable for anti-lifting device
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 03 28 56789
03 Year 2003
28 Calendar week
56789 Consecutive number
Wiring
Two or more drives with electronic limit switching
can be connected in parallel to a control point.
The maximum number of synchronously con-
trolled drives depends on the respective current
consumption but must not exceed 5.
The changeover time for switching the running di-
rection must be at least 0.5 seconds. The switch
and controls must not execute simultaneous UP
and DOWN commands.
PicoR+ drives
Mains
Drive
Drive 2Drive 1
Mains
