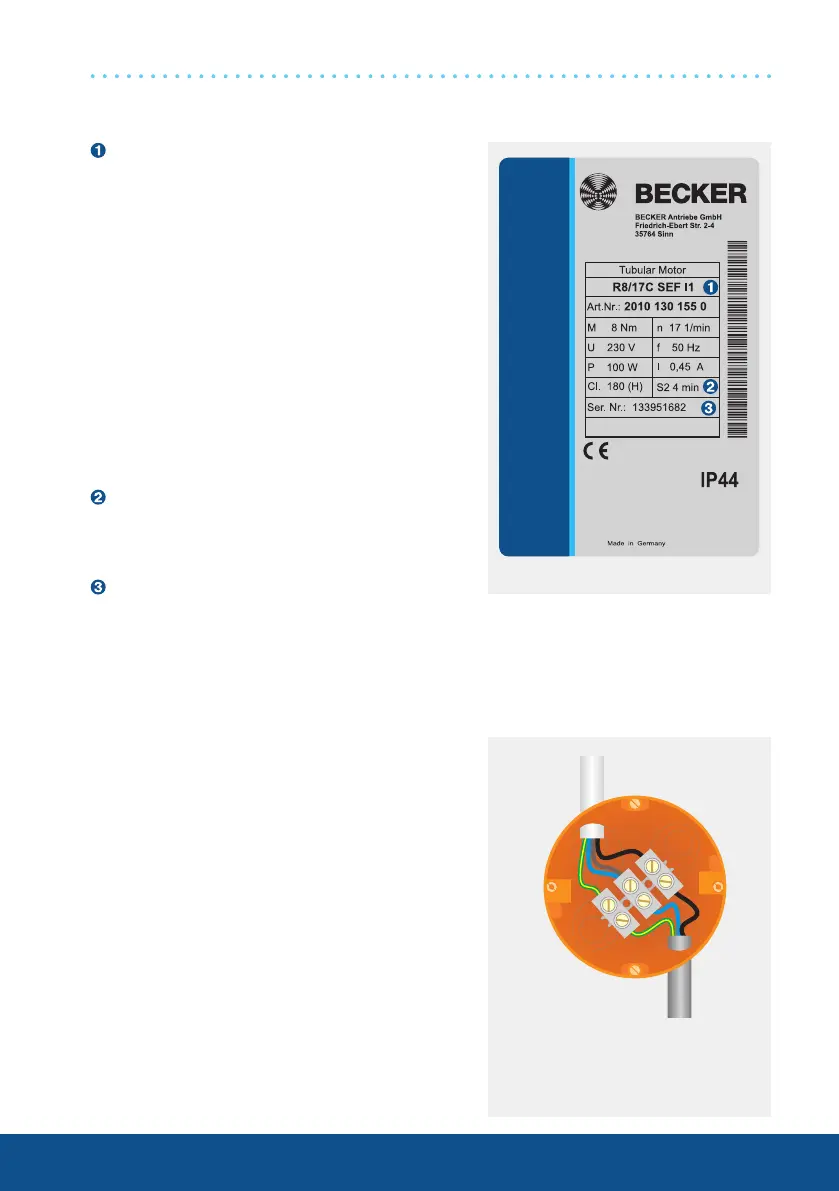

Type plate
Type designation: e.g. R8/17C SEF I1
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
L - 58 mm
8/17 Rated torque/output speed
C Pluggable connecting cable
S Electronic limit switching for sun
protection
E Automatic reversing in the lower
limit position
F Radio receiver
I1 Programmable for different lock-
ing systems
Operating mode (short-period opera-
tion S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 13 39 51682
13 Year 2013
39 Calendar week
51682 Consecutive number
Wiring
Drives with electronic limit switching and inte-
grated radio receiver are connected directly
to the power supply. The brown wire and the
blue wire together are connected to the neu-
tral wire.
SEF I1 drives
Mains
Drive
