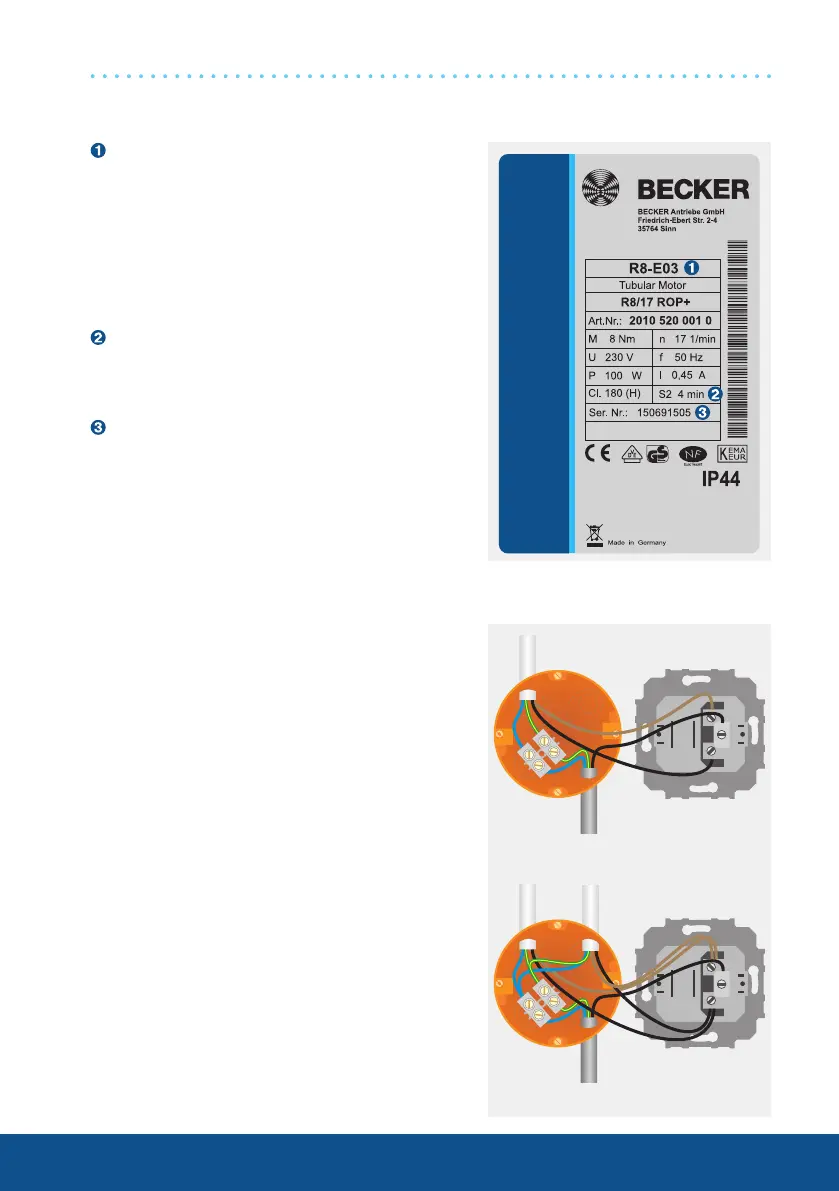

Type plate
Type designation: e.g. R8-E03
R Size of drive
(tube diameter)
P - 35 mm
R - 45 mm
8 Rated torque
E Electronic limit switch
03 Consecutive number
Operating mode (short-period operation
S2)
After 4 minutes of continuous operation,
the drive must be allowed to cool off.
Serial number: e.g. 15 06 91505
15 Year 2015
06 Calendar week
91505 Consecutive number
Wiring
Two or more drives with electronic limit switch-
ing can be connected in parallel to a control
point. The maximum number of synchronously
controlled drives depends on the respective
current consumption but must not exceed 5.
The changeover time for switching the
running direction must be at least 0.5 seconds.
The switch and controls must not execute
simultaneous UP and DOWN commands.
E03 drives
Mains
Drive
Drive 2Drive 1
Mains
