Radio technology
In the case of 5-channel transmitters, each channel behaves like a separate trans-
mitter. If all of the channels are selected (all group LEDs light up), all of the receivers
programmed into the transmitter are activated.

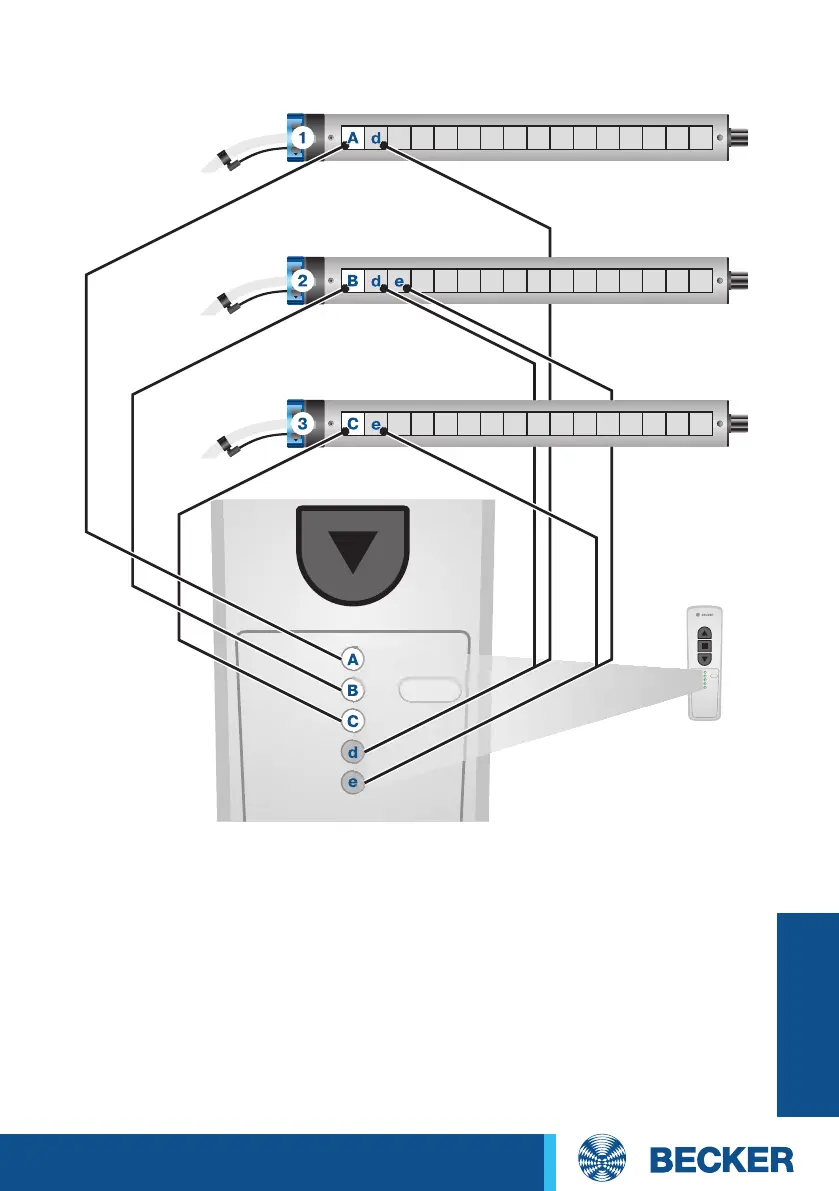

Example:
Channel 1 - "Single transmitter A" (master transmitter) controls drive 1
Channel 2 - "Single transmitter B" (master transmitter) controls drive 2
Channel 3 - "Single transmitter C" (master transmitter) controls drive 3
Channel 4 - "Group transmitter d" controls drives 1 and 2
Channel 5 - "Group transmitter e" controls drives 2 and 3
Channel 6 - "Central transmitter" (all group LEDs light up) controls drive1, drive 2
and drive 3
