Becker M User Manual

43
Roller shutter Drives

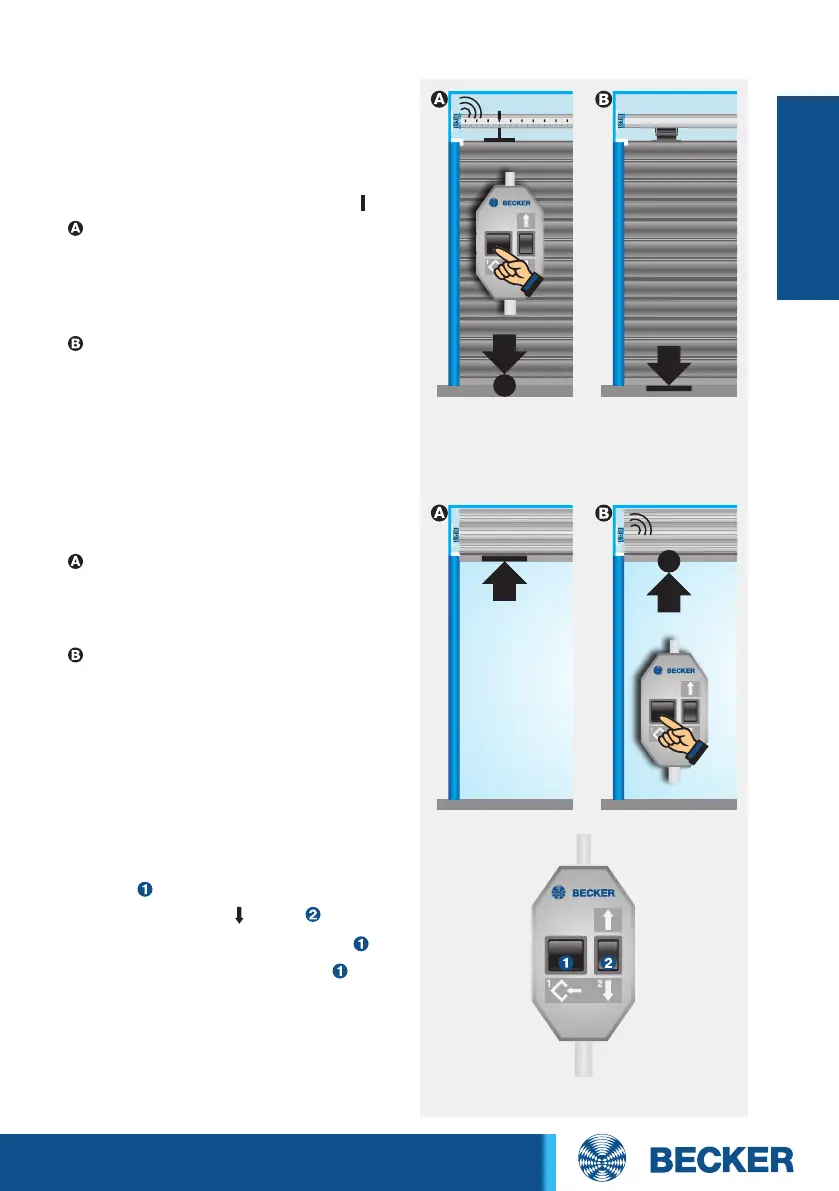

Setting the limit positions using the programming unit
1. Setting the lower limit position
using the programming unit
Connect the wires in the connecting cables
of the drive to the wires of the same colour
in the Becker programming unit. Set both
switches to the programming setting ( ).
To lower point
Run the roller shutter to the desired
position and press the programming
button on the programming unit until
the drive clicks once.
To lower stop
When using anti-lifting devices
(fixed mountings), run the roller
shutter downwards until the drive
stops automatically.
2. Setting the upper limit position
using the programming unit
To upper stop
Run the roller shutter towards the
upper stop until the drive stops
automatically.
To upper point
Run the roller shutter to the desired
upper position and press the pro-
gramming button on the programming
unit until the drive clicks once.
3. Deleting the limit positions
using the programming unit
- Press and hold the programming
button
- Press and hold the button
- Release the programming button
- Press the programming button again
until the drive clicks twice
If the drive is situated between the
limit positions, both limit positions are
deleted. If the drive is situated in one of
the limit positions, only this position will
be deleted.
1x click
1x click
