top line displays the active frequency and the bottom line displays the
already assigned or next vacant channel number. The channel number can be
selected by means of the “ROTARY ENCODER“. The label ”FREE” appears in front
of “CHXX” if the selected channel number is vacant. If the selected channel
number contains an already stored frequency ”USED” appears.

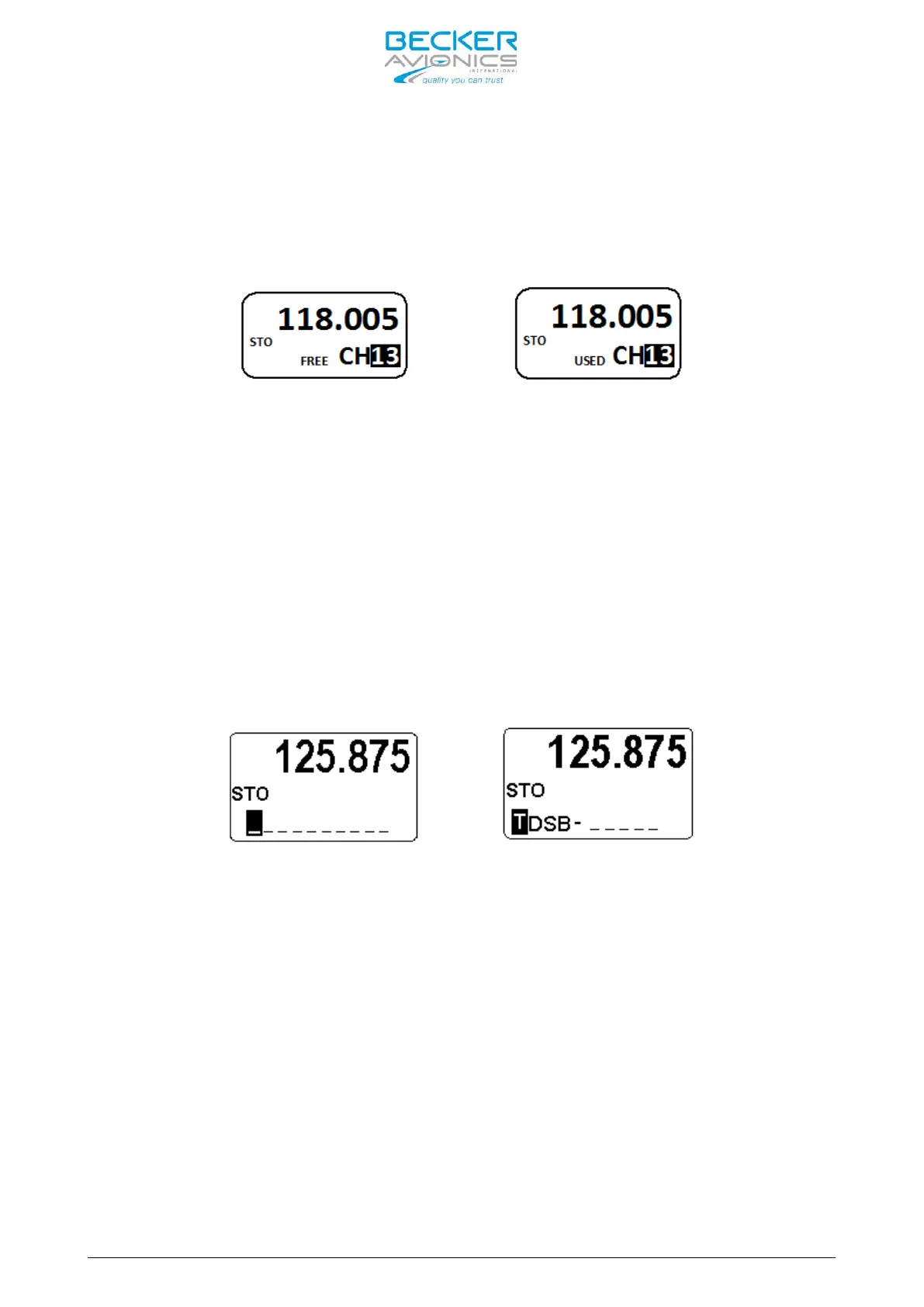

“FREE” and “USED” channel indication.
By entering the storage procedure, the transceiver will first propose the
next free channel for storing the active frequency. Beside the proposed
channel, any other channel in range 1 to 99 can be selected by turning the
rotary knob. For every selected channel “USED” or “FREE” is indicated.
Pressing the “STO” key once again assigns the Active Frequency to the
selected channel number, regardless of the channel is “FREE” or “USED”
indicated.
The transceiver automatically stores the alphanumeric label assigned to the
active frequency.
If the frequency has no label attached, ten underscore digits allow the
operator to insert a label. The cursor automatically appears on the first
position (see figures below).
By turning the “ROTARY ENCODER” characters can be selected. Selection works
in both directions (example: blank à A à B à C” by turning clockwise and “C
à B à A à blank by turning counter clockwise).
Each press of the “ROTARY ENCODER“ moves the cursor to the next position.
A short press of the “STO” key stores the label and a long press of the “STO”
key clears the currently edited label.
After storing labels, the transceiver returns back to the previous frequency
selection mode (standard mode / direct tune mode / scan function).
If no action occurs in label editing mode within 7 seconds, the transceiver
returns to the previous frequency selection mode without storing the
frequency and label information.
Stored frequencies can be recalled in channel mode (see chapter 3.5.3).
