2.3 EP3162
2.3.1 EP3162 - Introduction

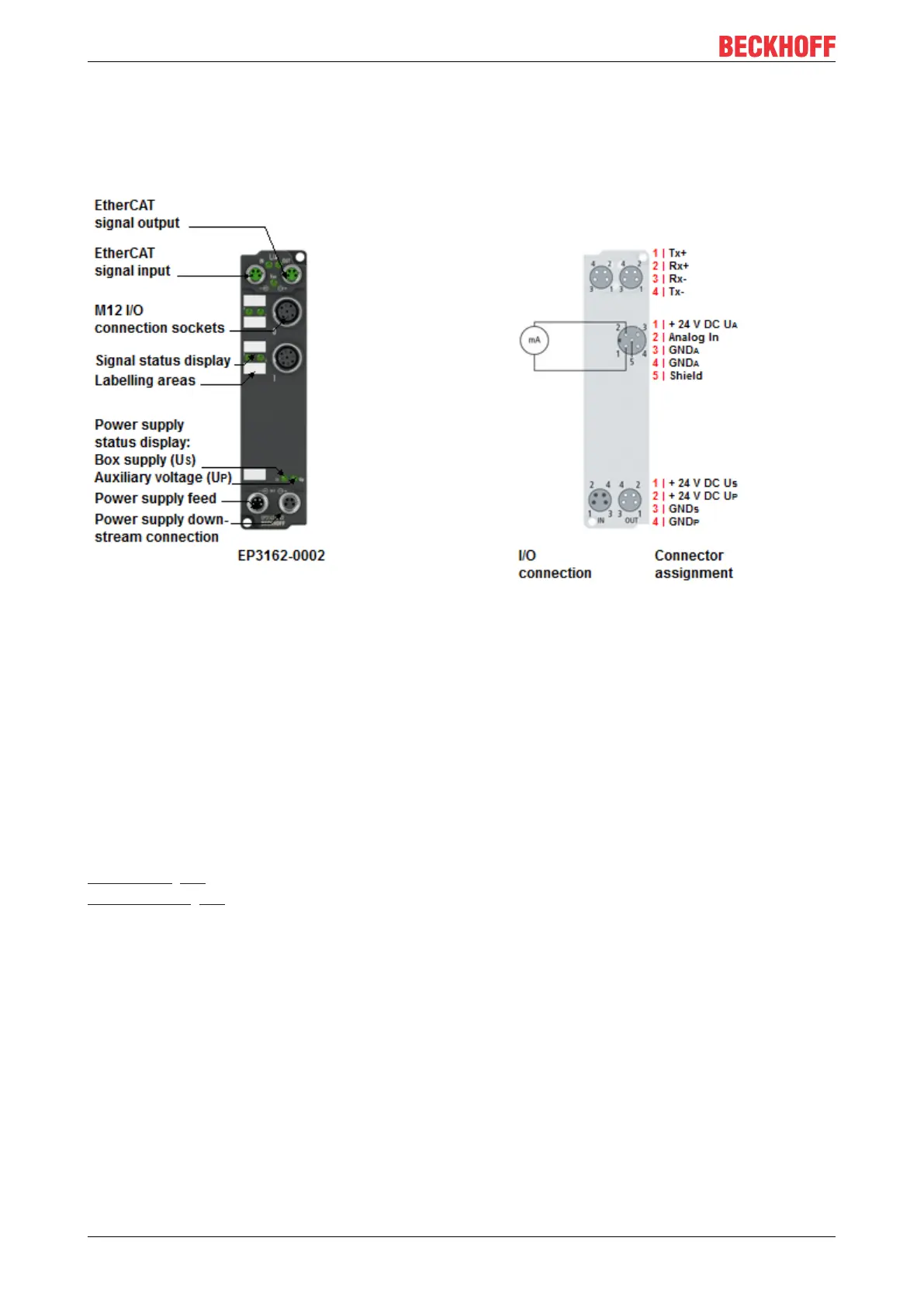

Fig.4: EP3162-0002
2-channel analog input ± 10V or 0/4...20mA, electrically isolated, single-ended, 16-bit
The EP3162 EtherCAT Box has two analog inputs that can be individually parameterized to process signals
either in the range from -10V to +10V or from 0/4mA to 20mA. The voltage or input current is digitized with
a resolution of 16bits, and is transmitted (electrically isolated) to the higher-level automation device.
The two input channels are electrically isolated from each other. The input filter and therefore the conversion
times are configurable in a wide range. The inputs can, if required, be scaled differently, and automatic limit
value monitoring is also available. EtherCAT is used for parameterization purposes. The parameters are
stored in the module.
