Configuration
EP31xx62 Version: 2.4

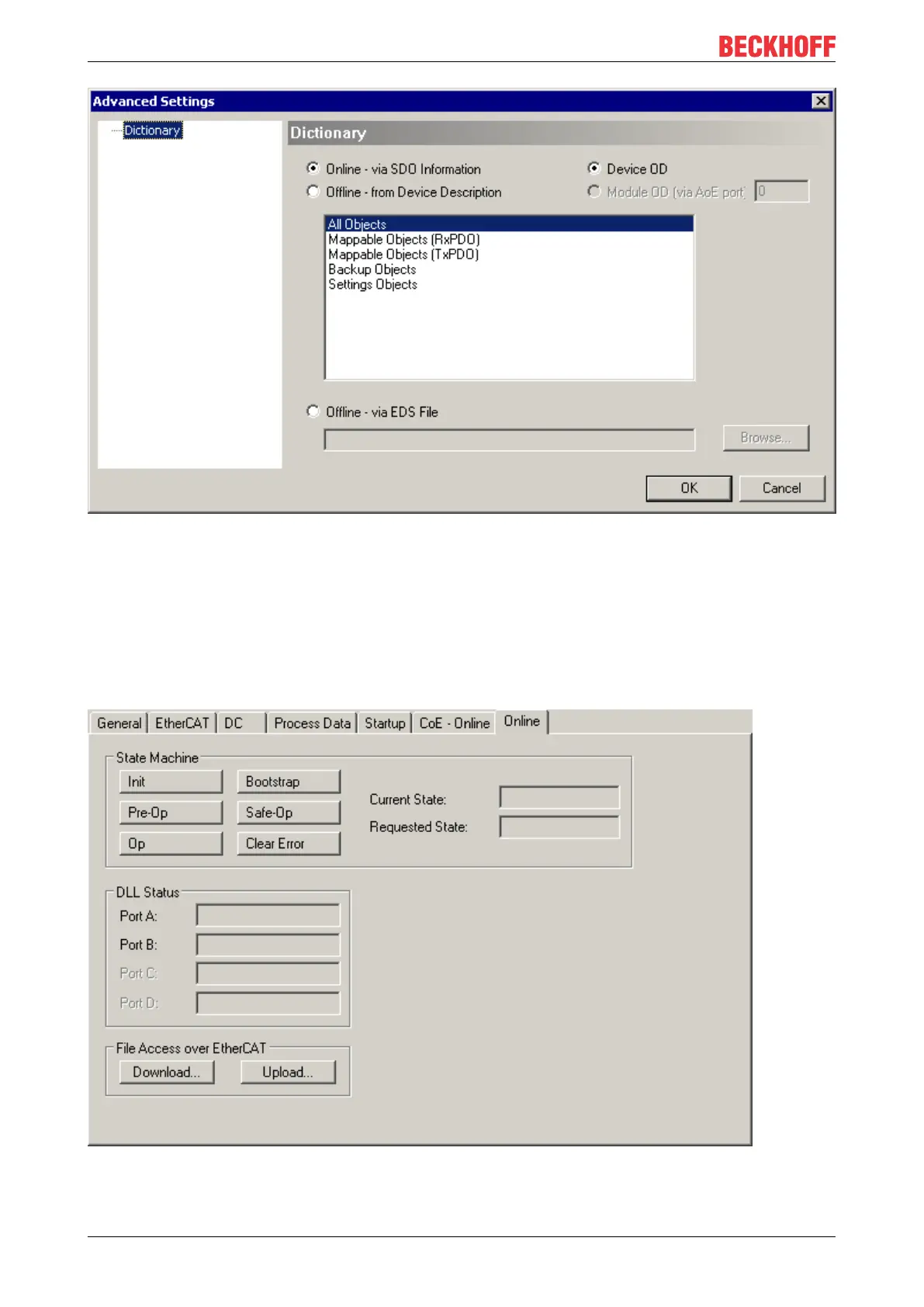

Fig.51: Advanced settings
Online
- via SDO information
If this option button is selected, the list of the objects included in the object
directory of the slave is uploaded from the slave via SDO information. The list
below can be used to specify which object types are to be uploaded.
Offline
- via EDS file
If this option button is selected, the list of the objects included in the object
directory is read from an EDS file provided by the user.
Online tab
Fig.52: Online tab
