Mounting and cabling
EP31xx32 Version: 2.4
3 Mounting and cabling
3.1 Mounting
3.1.1 Dimensions
119 126
23
30
26.5
13.5
Ø 3.5

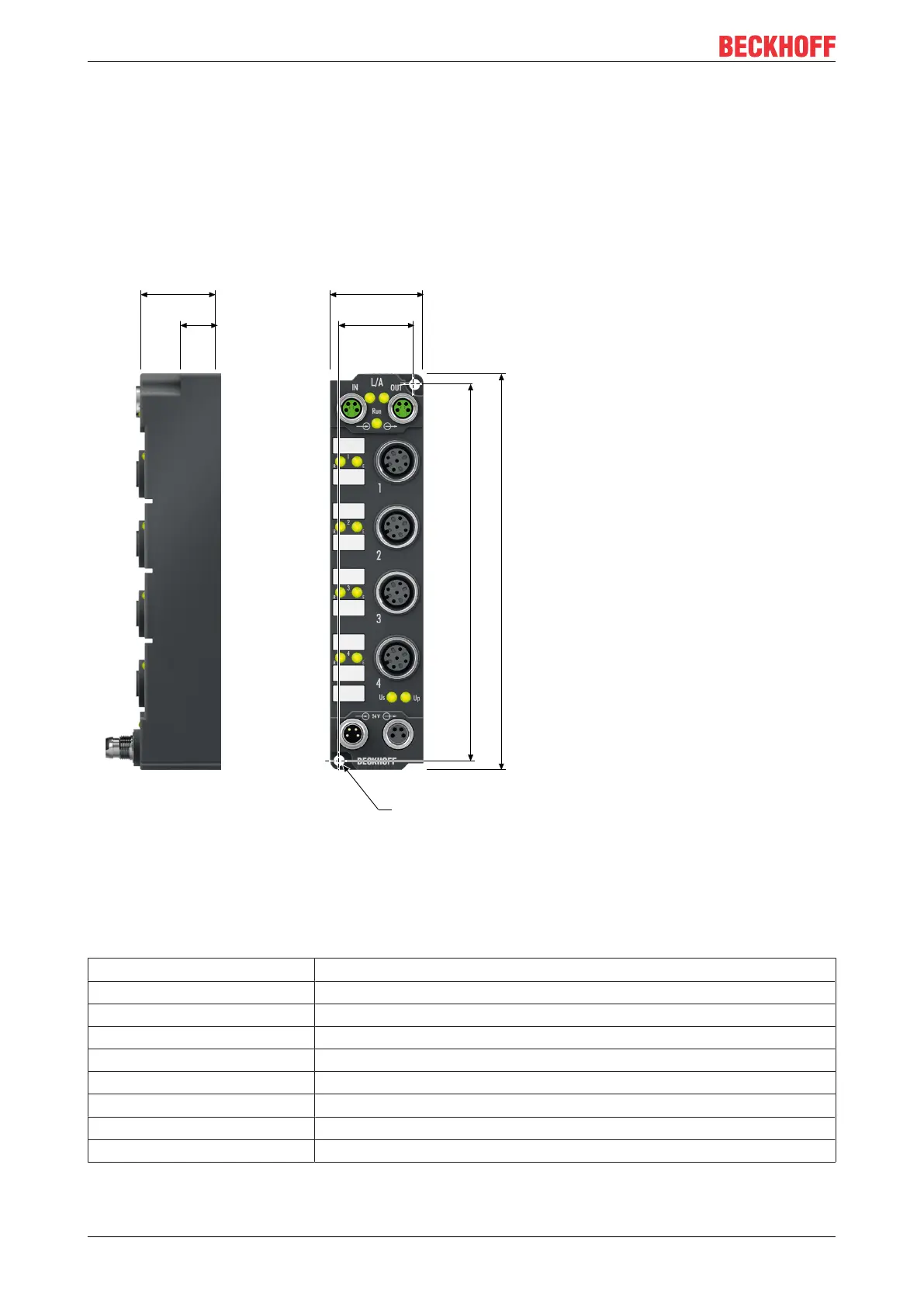

Fig.10: Dimensions
All dimensions are given in millimeters.
Housing features
Housing material PA6 (polyamide)
Sealing compound polyurethane
Mounting two fastening holes Ø3.5mm for M3
Metal parts brass, nickel-plated
Contacts CuZn, gold-plated
Power feed through max. 4A
Installation position variable
Protection class IP65, IP66, IP67 (conforms to EN60529) when screwed together
Dimensions (HxWxD) approx. 126 x 30 x 26.5mm (without connectors)
