Mounting and cabling
EP31xx 43Version: 2.4
3.7 EP3162-0002 – Signal connection and Status LEDs
3.7.1 Analog voltage inputs M12, one single-ended input per socket
Analog input, -10V to +10V or 0V to +10V

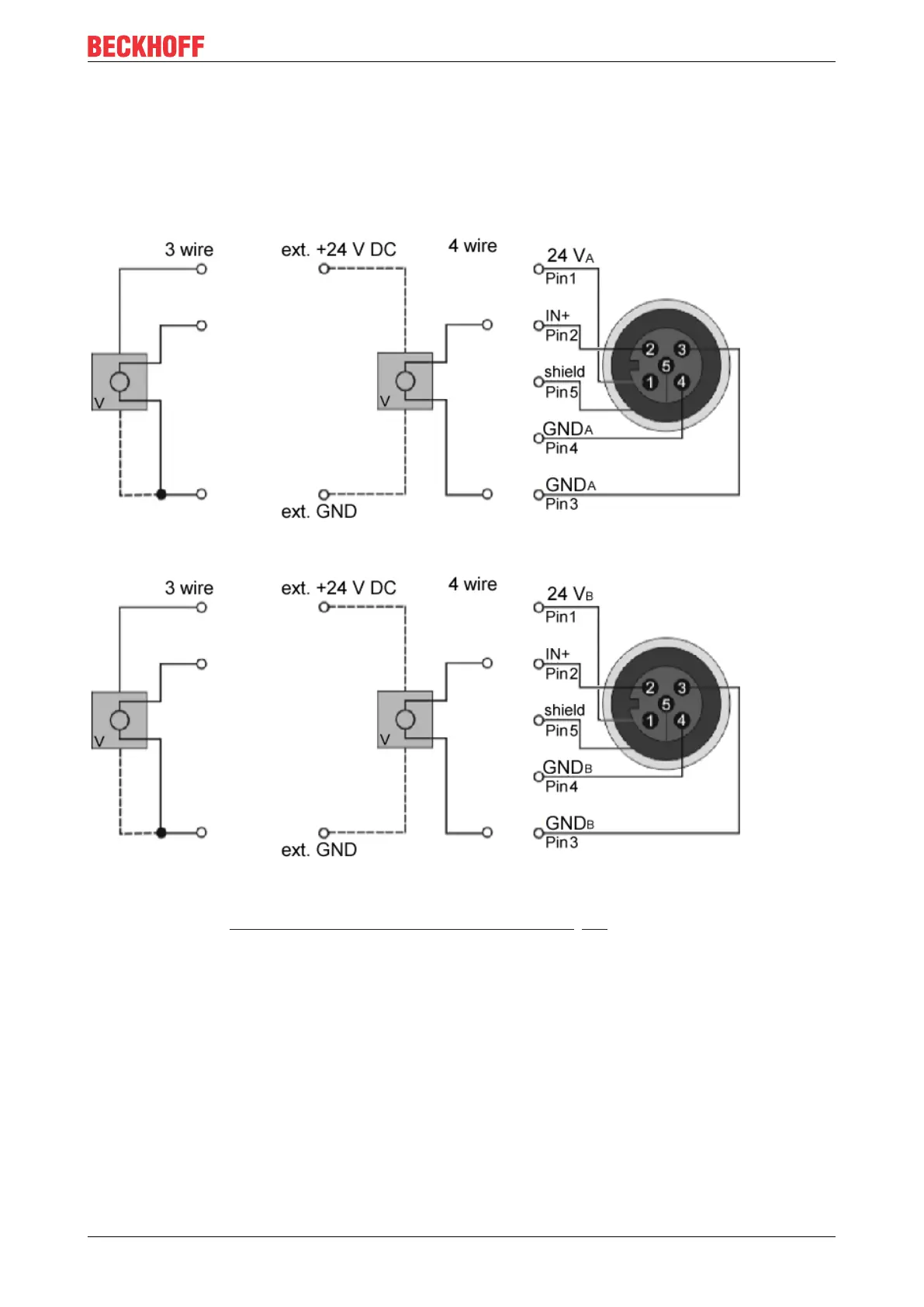

Fig.22: M12 analog voltage input, channel 1
Fig.23: M12 analog voltage input, channel 2
Refer to the chapter EP3162-0002 - Electrical isolation of the channels [}42] for additional information.
