2.5.6 EP31x4 - Scope of supply
Make sure that the following components are included in the scope of delivery:
• 1x EtherCAT Box EP3174-0002 / EP3174-0092 / EP3184-0002 / EP3184-1002
• 1x protective cap for supply voltage input, M8, transparent (pre-assembled)
• 1x protective cap for supply voltage output, M8, black (pre-assembled)
• 2x protective cap for EtherCAT socket, M8, green (pre-assembled)
• 10x labels, blank (1 strip of 10)
Pre-assembled protective caps do not ensure IP67 protection
Protective caps are pre-assembled at the factory to protect connectors during transport. They may
not be tight enough to ensure IP67 protection.
Ensure that the protective caps are correctly seated to ensure IP67 protection.

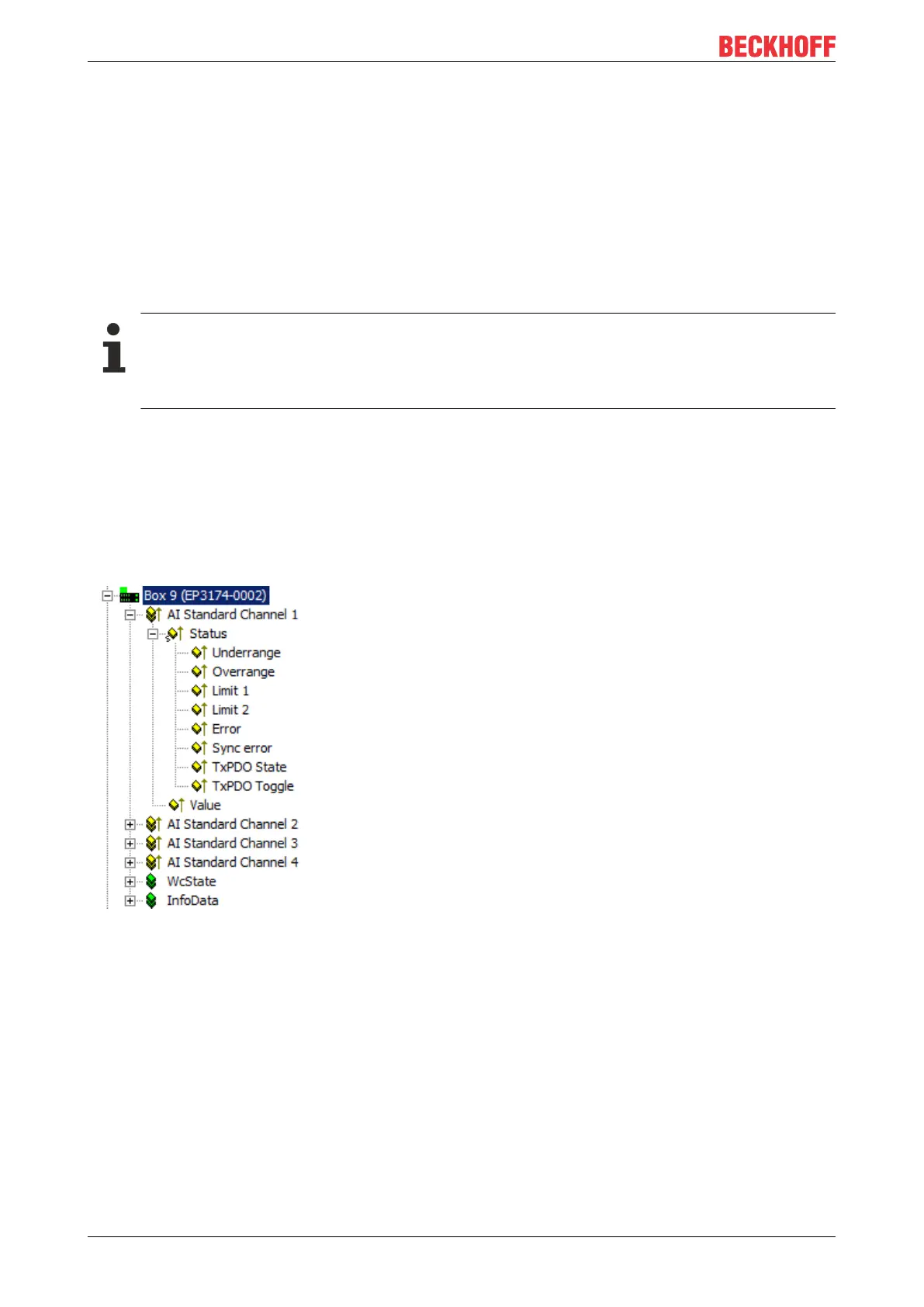

2.5.7 EP31x4 - Process image
The process data of the EP3174-0002, EP3174-0092, EP3184-0002 and EP3184-1002 modules are
identical in the default setting and are illustrated here taking the EP3174-0002 as an example.
AI Standard Channel1
You will find the data of the 1
st
analog channel
under AI Standard Channel1.
AIStandard Channel 2 to 4
The data of analog channels 2 to 4 have the same structure as those of the 1
st
channel.
