Beckhoff EP31 Series User Manual

Mounting and cabling
EP31xx34 Version: 2.4

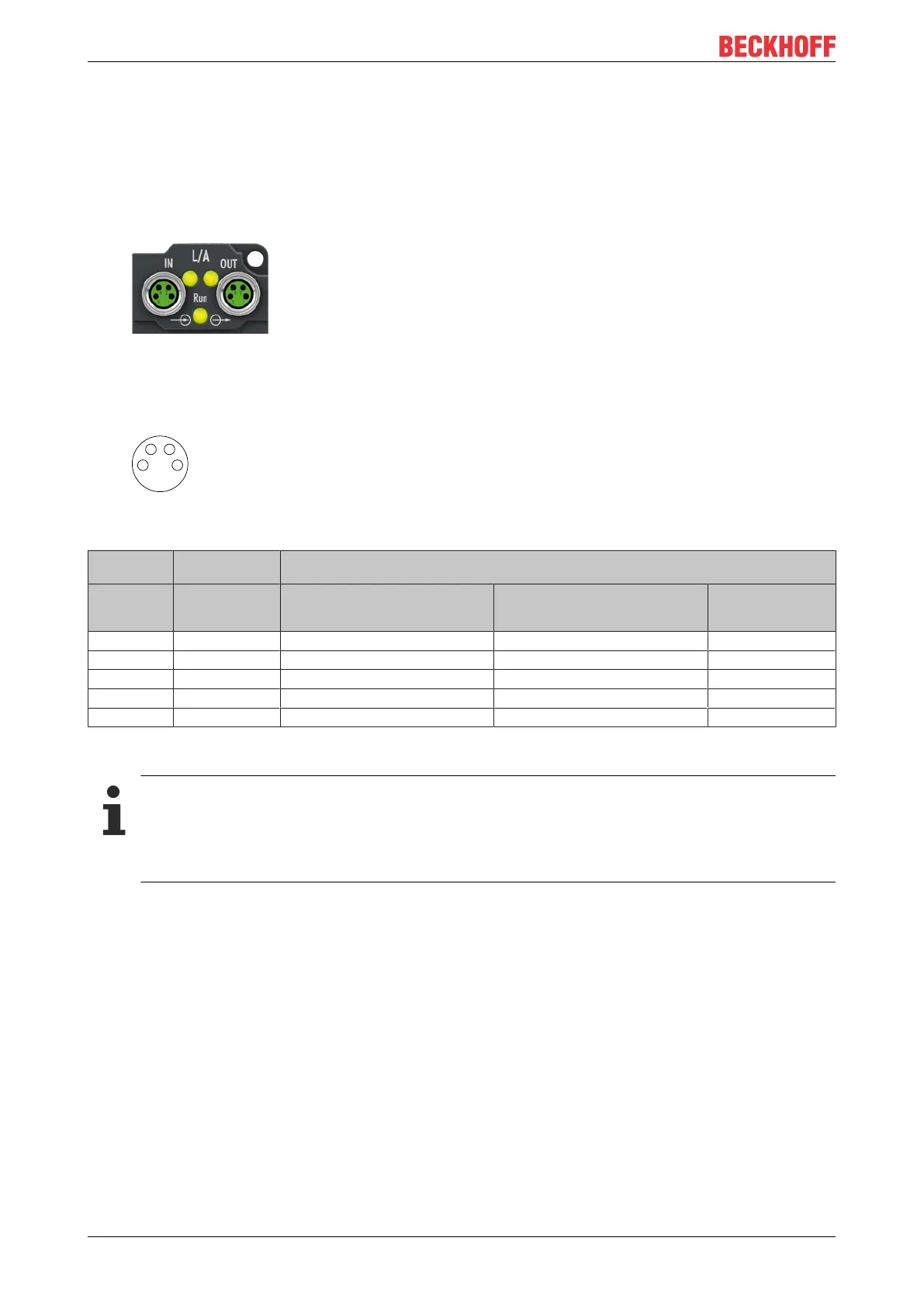

3.2 EtherCAT
3.2.1 Connectors
EtherCAT Box Modules have two green M8 sockets for the incoming and downstream EtherCAT
connections.
Fig.11: EtherCAT connector
Connection
3 1
24
Fig.12: M8 socket
EtherCAT M8
connector
Core colors
Signal Contact ZB9010, ZB9020, ZB9030, ZB9032,
ZK1090-6292,
ZK1090-3xxx-xxxx
ZB9031 and old versions of
ZB9030, ZB9032, ZK1090-3xxx-
xxxx
TIA-568B
Tx + 1 yellow
1)
orange/white white/orange
Tx - 4 orange
1)
orange orange
Rx + 2 white
1)
blue/white white/green
Rx - 3 blue
1)
blue green
Shield Housing Shield Shield Shield
1)
Core colors according to EN61918
Adaptation of core colors for cables ZB9030, ZB9032 and ZK1090-3xxxx-xxxx
For standardization, the core colors of the ZB9030, ZB9032 and ZK1090-3xxx-xxxx cables have
been changed to the EN61918 core colors: yellow, orange, white, blue. So there are different color
codes in circulation. The electrical properties of the cables have been retained when the core colors
were changed.
