2.5.8 EP3174-0092 – Process image (with TwinSAFE SC modules)

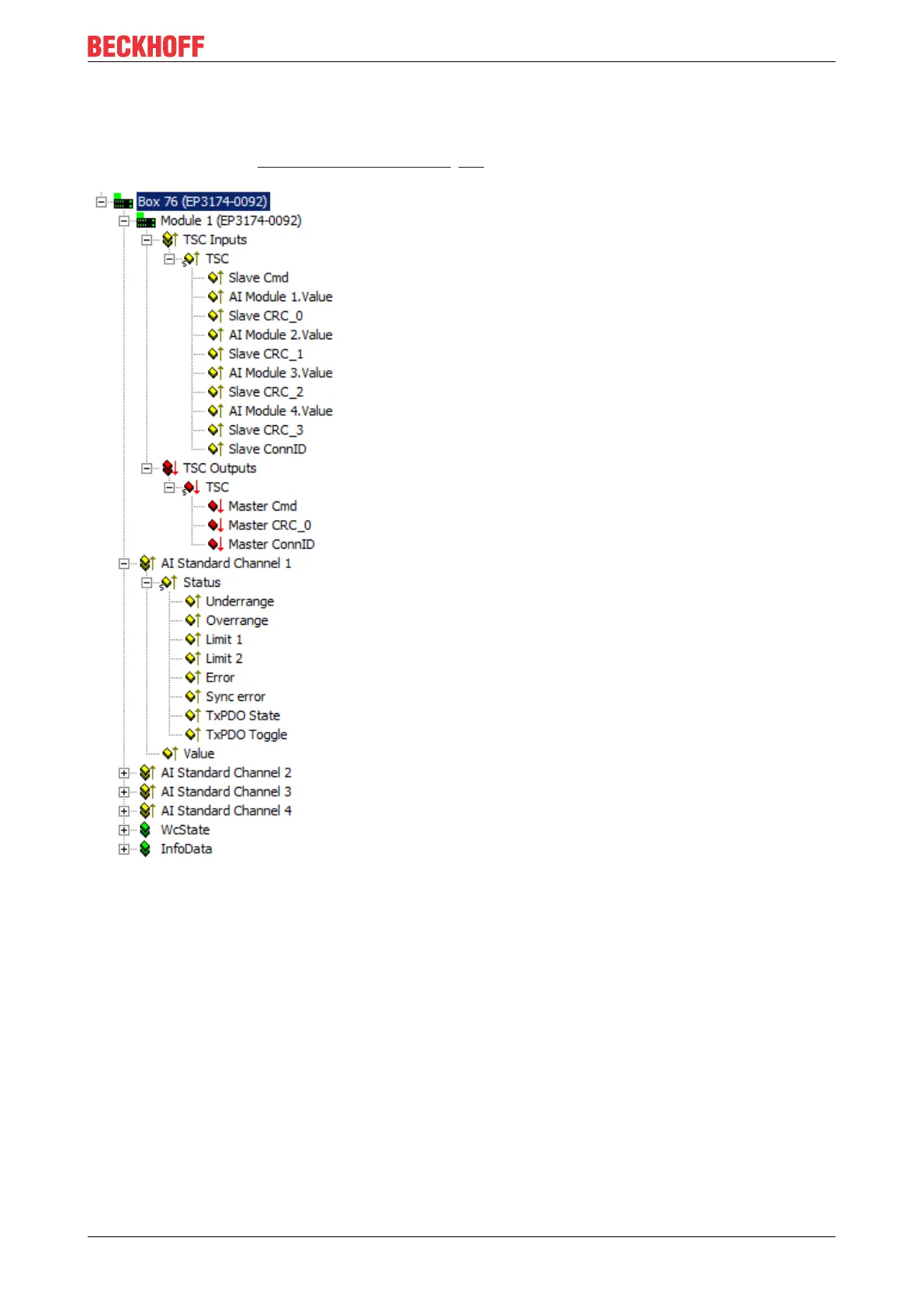

In the following illustration the process data are shown after inserting the TwinSAFE SC module as
described in the chapter TwinSAFE SC configuration [}86].
Under Module 1 (EP3174-0092) you will find
• the TSC input data and
• the TSC output data.
You will find the data of the 1
st
analog channel under AI
Standard Channel1.
AIStandard Channel 2 to 4
The data of analog channels 2 to 4 have the same structure as those of the 1
st
channel.
