Configuration

EP31xx84 Version: 2.4

4.8 Measuring ranges

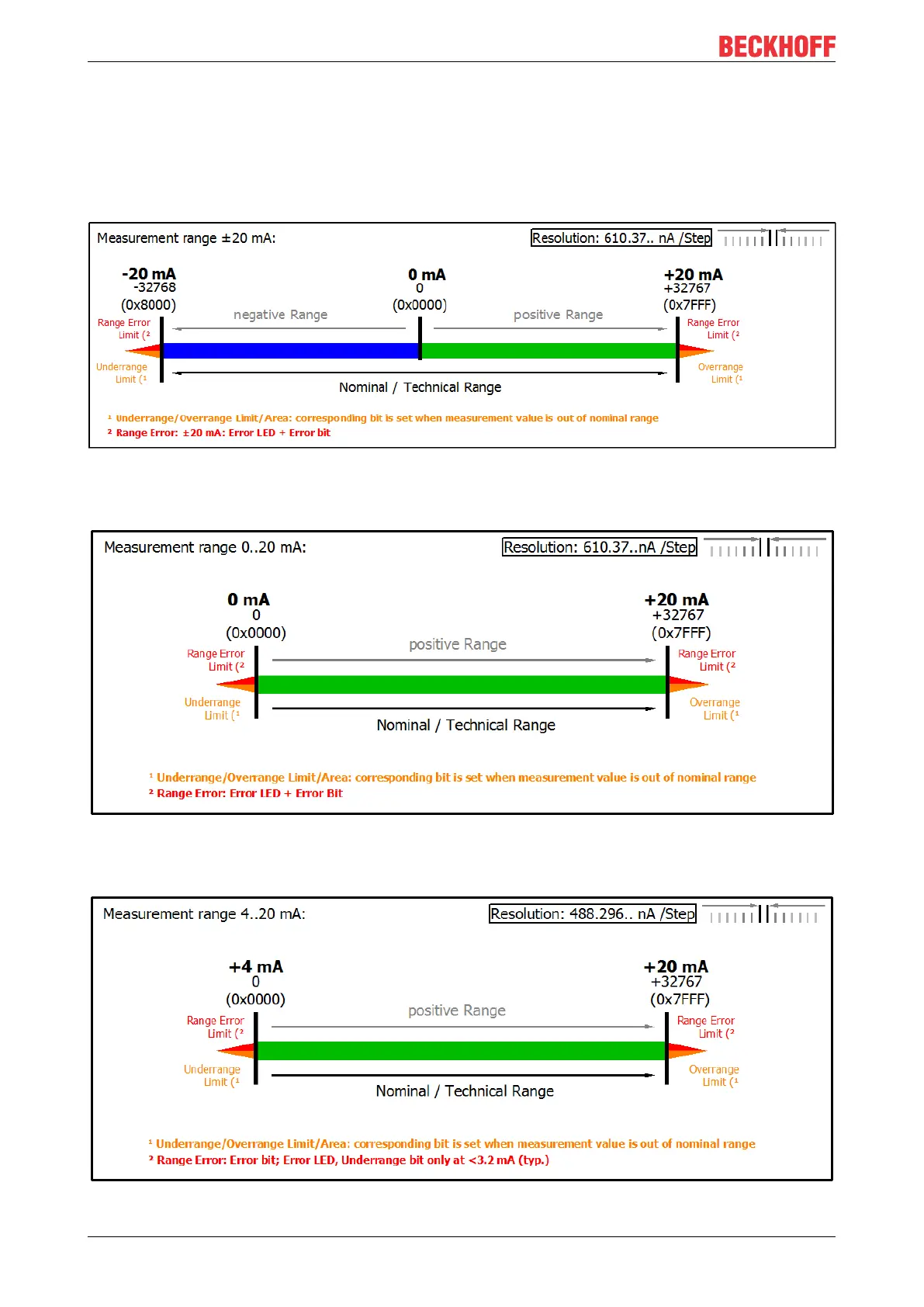

The following diagrams show the output values of the measuring ranges as well as the behavior when the

limits ranges are exceeded.

EP3162-0002 (+/- 20mA)

Fig.65: Data flow with correction calculation for +/- 20mA

EP3162-0002, EP3174-xxxx, EP318x-xxxx (0…20mA)

Fig.66: Data flow with correction calculation for 0…20mA

EP3162-0002, EP3174-xxxx, EP318x-xxxx (4…20mA)

Fig.67: Data flow with correction calculation for 4…20mA
