Product overview
EP31xx 17Version: 2.4
2.3.3 EP3162 - Scope of supply
Make sure that the following components are included in the scope of delivery:
• 1x EtherCAT Box EP3162-0002
• 1x protective cap for supply voltage input, M8, transparent (pre-assembled)
• 1x protective cap for supply voltage output, M8, black (pre-assembled)
• 2x protective cap for EtherCAT socket, M8, green (pre-assembled)
• 10x labels, blank (1 strip of 10)
Pre-assembled protective caps do not ensure IP67 protection
Protective caps are pre-assembled at the factory to protect connectors during transport. They may
not be tight enough to ensure IP67 protection.
Ensure that the protective caps are correctly seated to ensure IP67 protection.

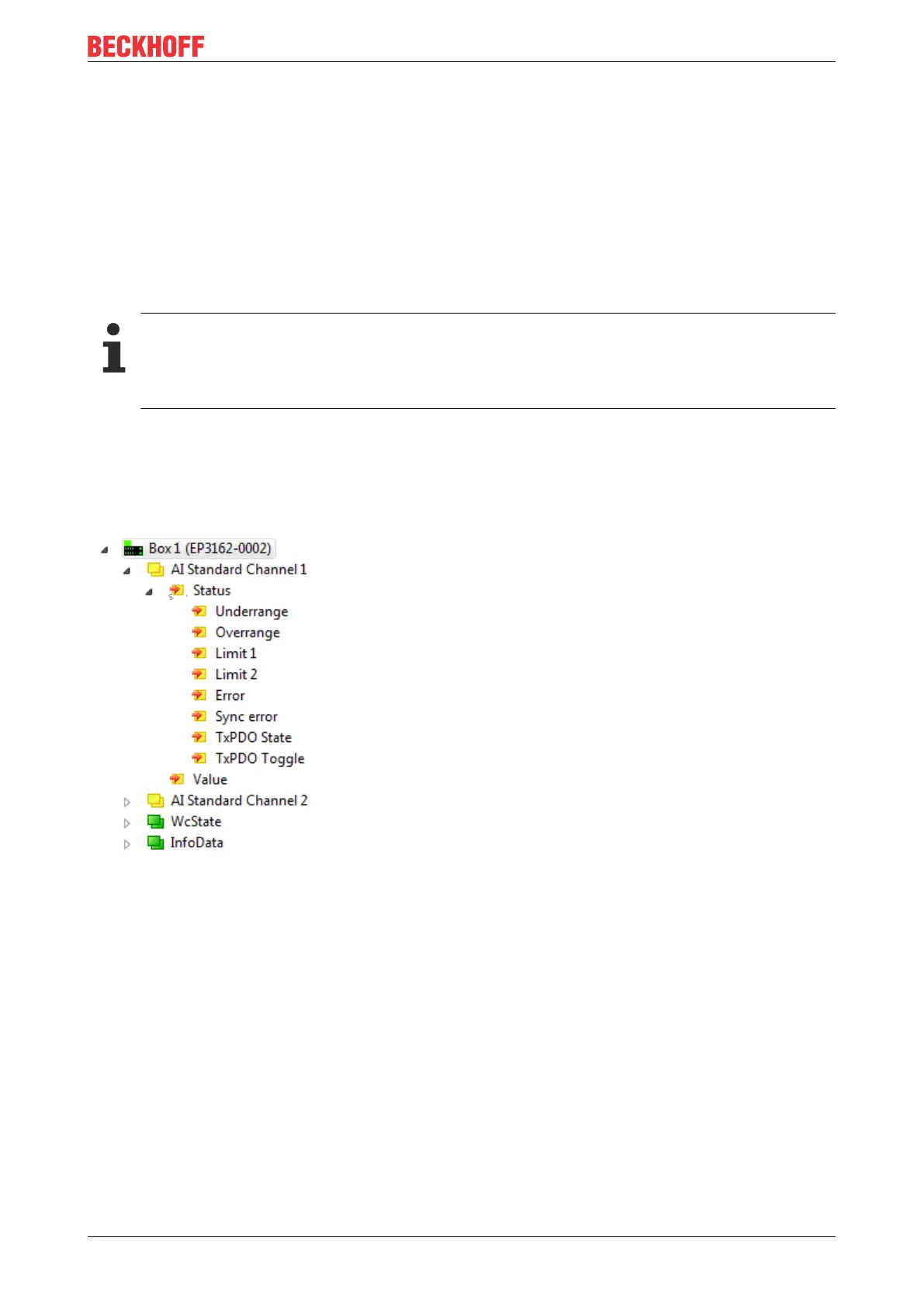

2.3.4 EP3162 - Process image
AI Standard Channel 1 and 2
You will find the data of the 1
st
analog
channel under AI Standard Channel 1.
The data of the 2
nd
channel (AI Standard
Channel 2) are structured identically to
those of the 1
st
channel.
