Mounting and cabling

EP31xx52 Version: 2.4

3.11.3 Status LEDs at the M12 connections

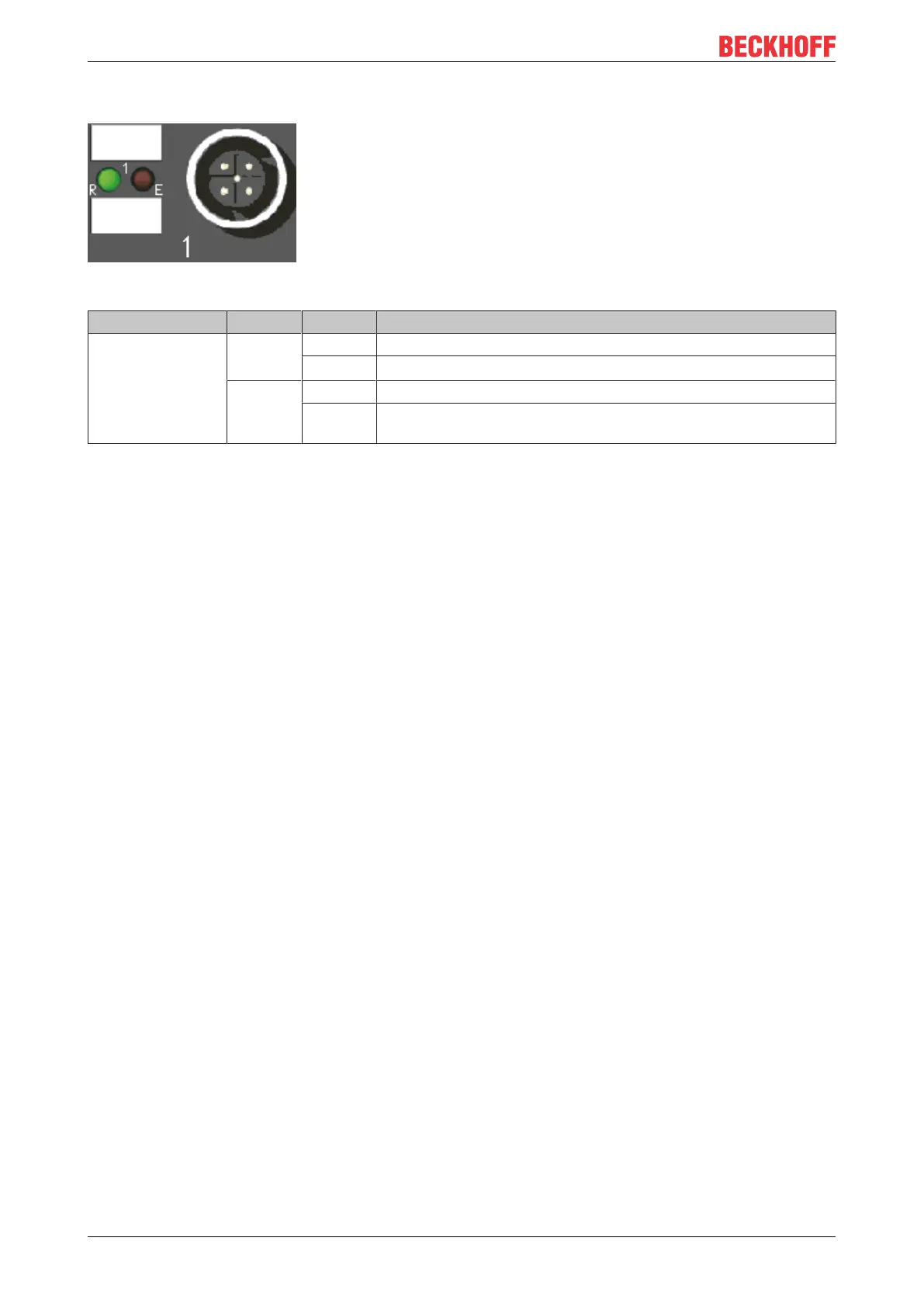

Fig.38: Status LEDs at the M12 connections

Connection LED Display Meaning

M12 socket no. 1,

Sockets 2 and 4

are not used.

left

off No data transfer to the A/D converter

green Data transfer to A/D converter

right

off Function OK

red Error: Broken wire or measured value outside the measuring

range

Correct function is indicated if the green RUN LED is on and the red Error LED is off.
