Product overview
EP31xx 27Version: 2.4
2.5.4 EP3184-1002 - Introduction
Channel 1
Channel 2
Channel 3
Channel 4

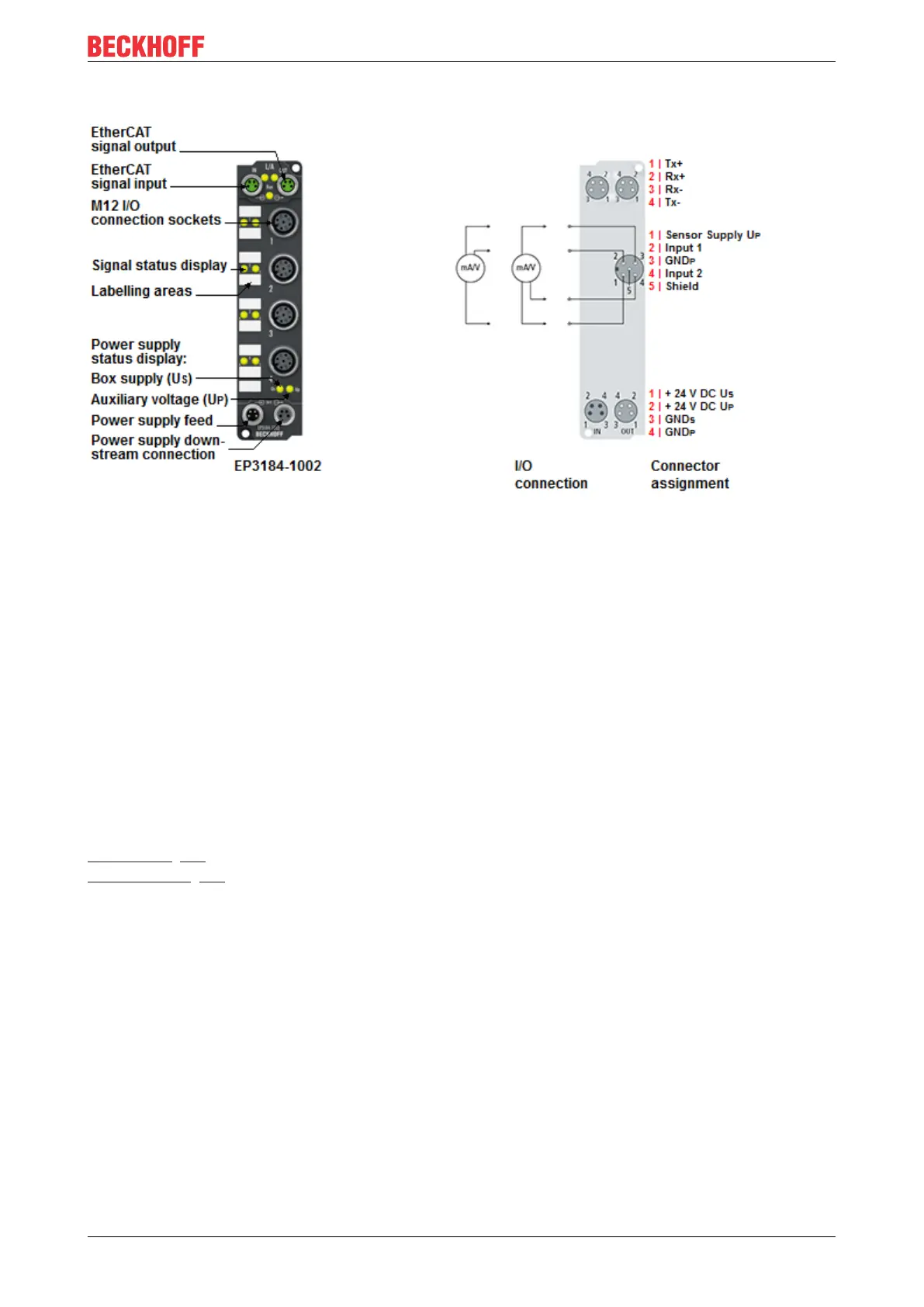

Fig.9: EP3184-1002
4-channel analog input ±10V or 0/4...20mA, parameterizable, single-ended, 16-bit
The EP3184-1002 EtherCAT Box has four analog inputs which can be individually parameterized, so that
they process signals either in the -10V to +10V range or the 0/4mA…20mA range.
Two inputs are combined in each case on sockets 1 and 3. Sockets 2 and 4 have no function.
The voltage or input current is digitized with a resolution of 16bits, and is transmitted (electrically isolated) to
the higher-level automation device.
The four input channels are single-ended and share a common internal ground potential. The input filter and
therefore the conversion times are configurable in a wide range.
The inputs can, if required, be scaled differently, and automatic limit value monitoring is also available.
EtherCAT is used for parameterization purposes. The parameters are stored in the module.
Quick-Links
Installation [}32]
Configuration [}56]
