Configuration

EP31xx 83Version: 2.4

IIR filter

The filter with IIR characteristics is a discrete time, linear, time invariant filter that can be set to eight levels

(level 1 = weak recursive filter, up to level 8 = strong recursive filter)

The IIR can be understood to be a moving average value calculation after a low-pass filter.

Through the synchronization mode FreeRun the IIR filter operates with an internal cycle time of 180µs (1 or

2 channels) or 500µs (4 channels).

Filter characteristics for IIR filters

IIR filter -3 dB cut-off frequency with 500µs sampling time

IIR 1 400Hz

IIR 2 220Hz

IIR 3 100Hz

IIR 4 50Hz

IIR 5 24Hz

IIR 6 12Hz

IIR 7 6.2Hz

IIR 8 3.0Hz

4.7 Data stream

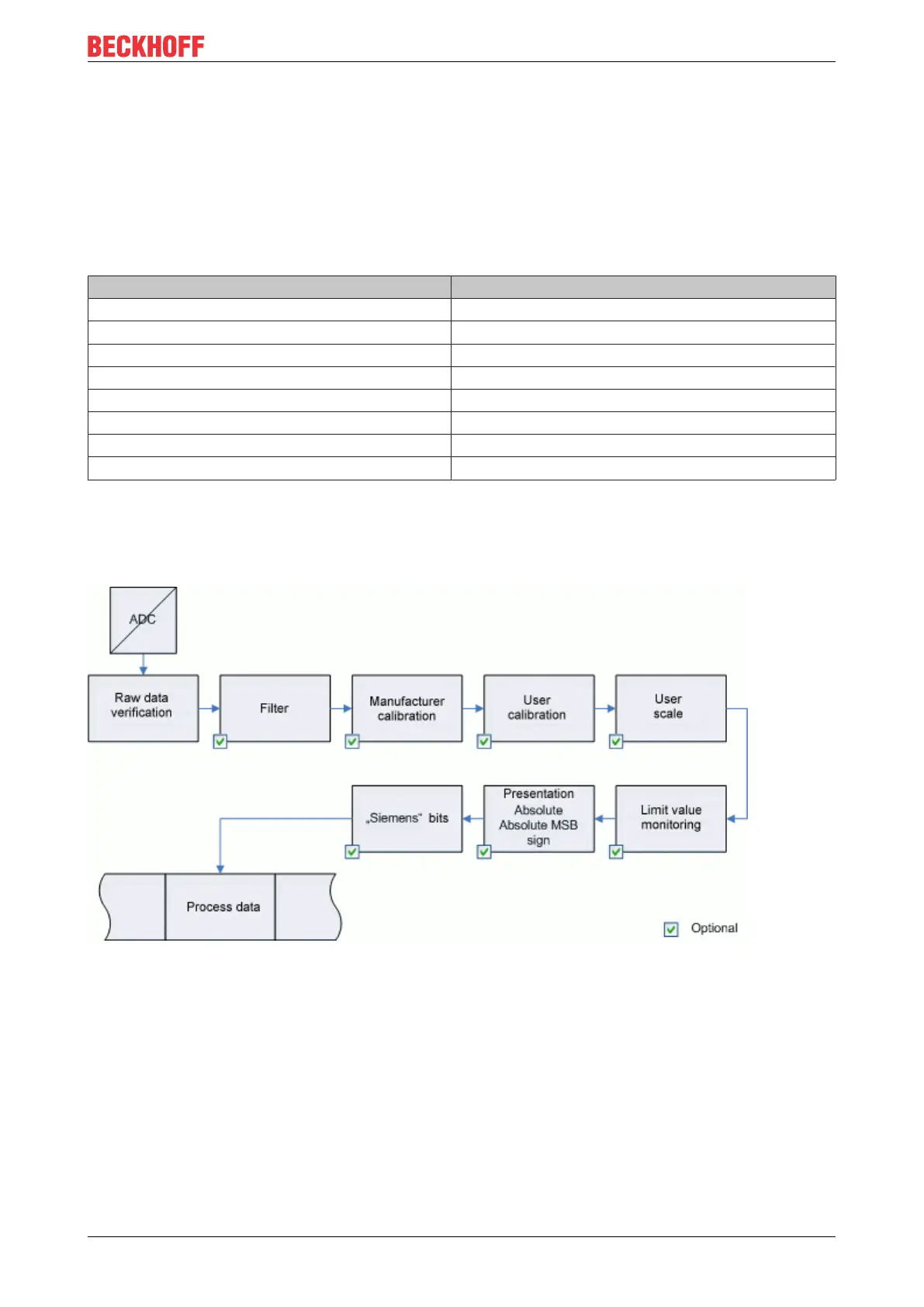

The following flow chart illustrates the data stream of the EPI31xx (processing of raw data).

Fig.64: Diagram showing the data stream in the EP31xx
