32

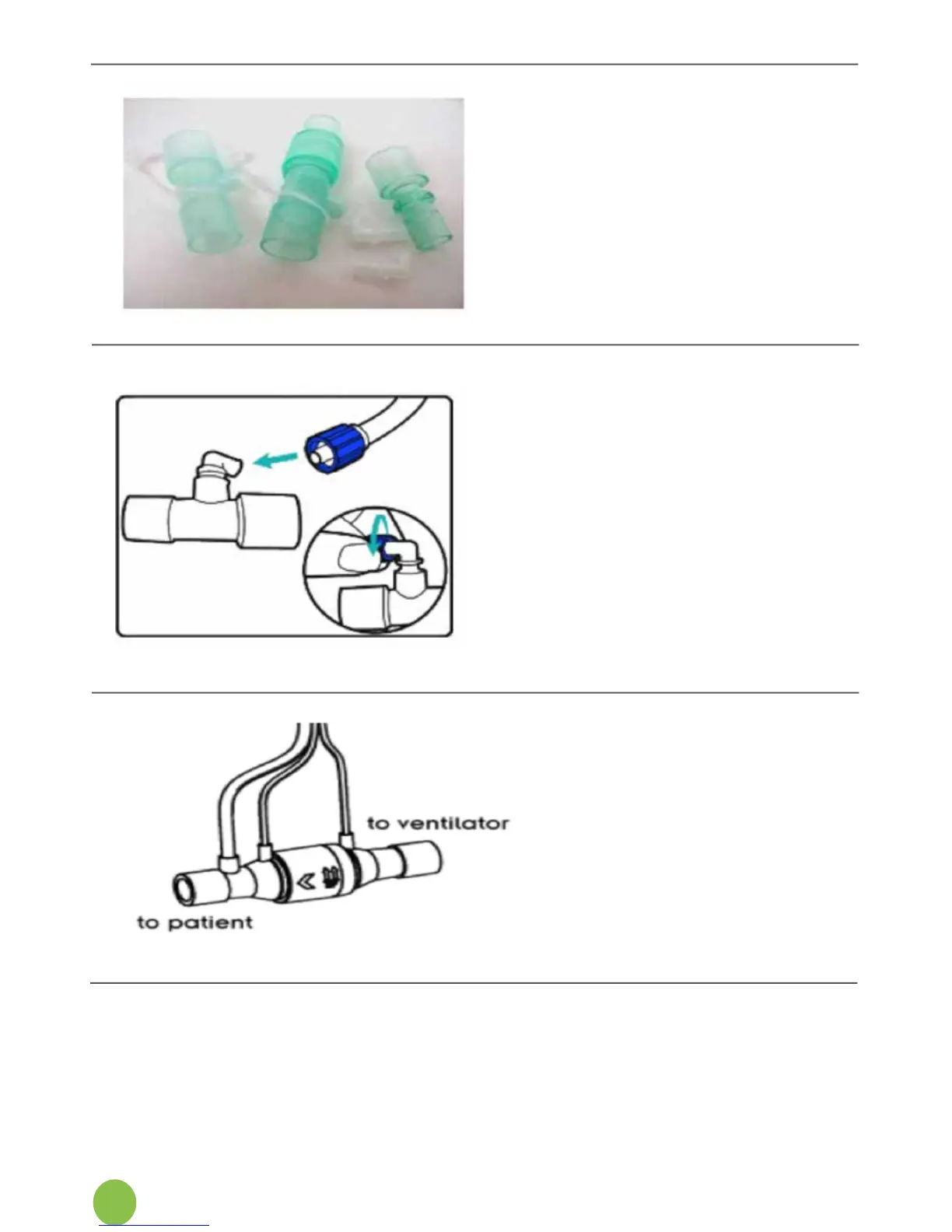

9. Select the NOxKIT that matches
thepatientventilatorcircuitsize
(10mm,15mm,or22mm).
10. FromtheNOxKIT,selectthe
male-female single-sized
connector and assemble one
of the female luer ports by
pushingitrmlyhomeintothe
side port of the adaptor. Screw
the male luer lock at the end
of the sample line onto the
ventilatoradaptor.
11. The NOxFlow is marked with
aowdirectionarrowingreen.
This points in the direction of the
ventilatorairow,towardsthe
patient sampling point.
