8.1 Connection of lines
• Professional layout!
• When using pipes, observe that they are clean, seamless and of precision steel!
• Assemble the pipes professionally and free from distortion!
• A strain relief must be provided for the lubricant line at the latest 0.5 m after the device!
• The lubricant line should be prefilled in order to avoid air pockets in the system!
• Pay attention to pressure tightness of fittings!
• All components must be approved for max. operating pressure (see chapter 1. “Technical data”).
8.2 Power connection
• Power supply must be done by a professional electrician!
• A strain relief must be provided for the connection cables at the latest 0.5 m after the device!
• Electrical device components must be wired professionally!
• Compare voltage details with the existing mains voltage!
• Equipotential bonding must be done professionally by the operator via an according ground connection!
• Wire the device according to the connection diagram!
The connection cables are not included in the scope of delivery and must be ordered separately if needed. The
article numbers and the color assignment of the connection cables can be found in chapter 16. “Accessories”.

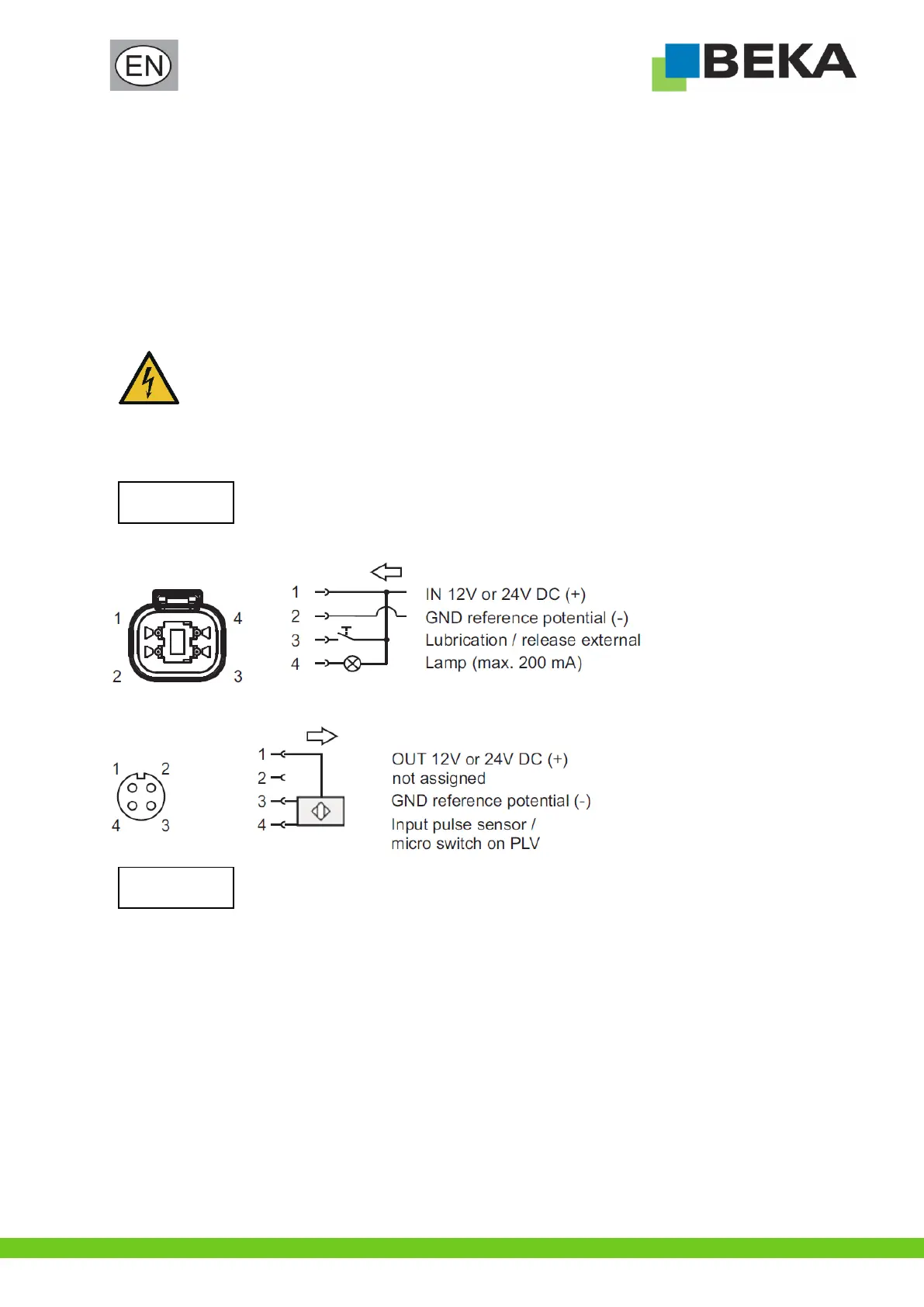

8.2.1 Connection diagram of DEUTSCH plug male
8.2.2 Connection diagram of bushing M12x1
The bushing M12x1 is only included in devices with extended control setting (article no.: 10144013).
9. Start up
9.1 Filling with lubricant
• Screw in the cartridge as described in chapter 9.1.1 “Screwing in or changing the cartridge”!
• Observe the machine manufacturer’s lubricant details! Only use lubricants which are listed in the lubricant release list
FFG_002_ZEPTO (available on request or at www.beka-lube.de)!
• Collect leaking lubricant in a suitable reservoir and dispose it professionally!
• Observe the safety data sheet of the lubricant manufacturer!
• The lubricant viscosity changes with the operating temperature.
• Ensure utmost cleanliness when changing the cartridge!
