© BEKA 2019 All rights reserved! -42-
11.4 Operational mode of lubrication duration P1 to P3
The lubrication duration can only be determined time-dependent for the device 10142862.
It can be determined time-dependent or pulse-dependent for the device 10144013.
The lubrication duration is displayed in the left segment of the display and can be set via the left control key.

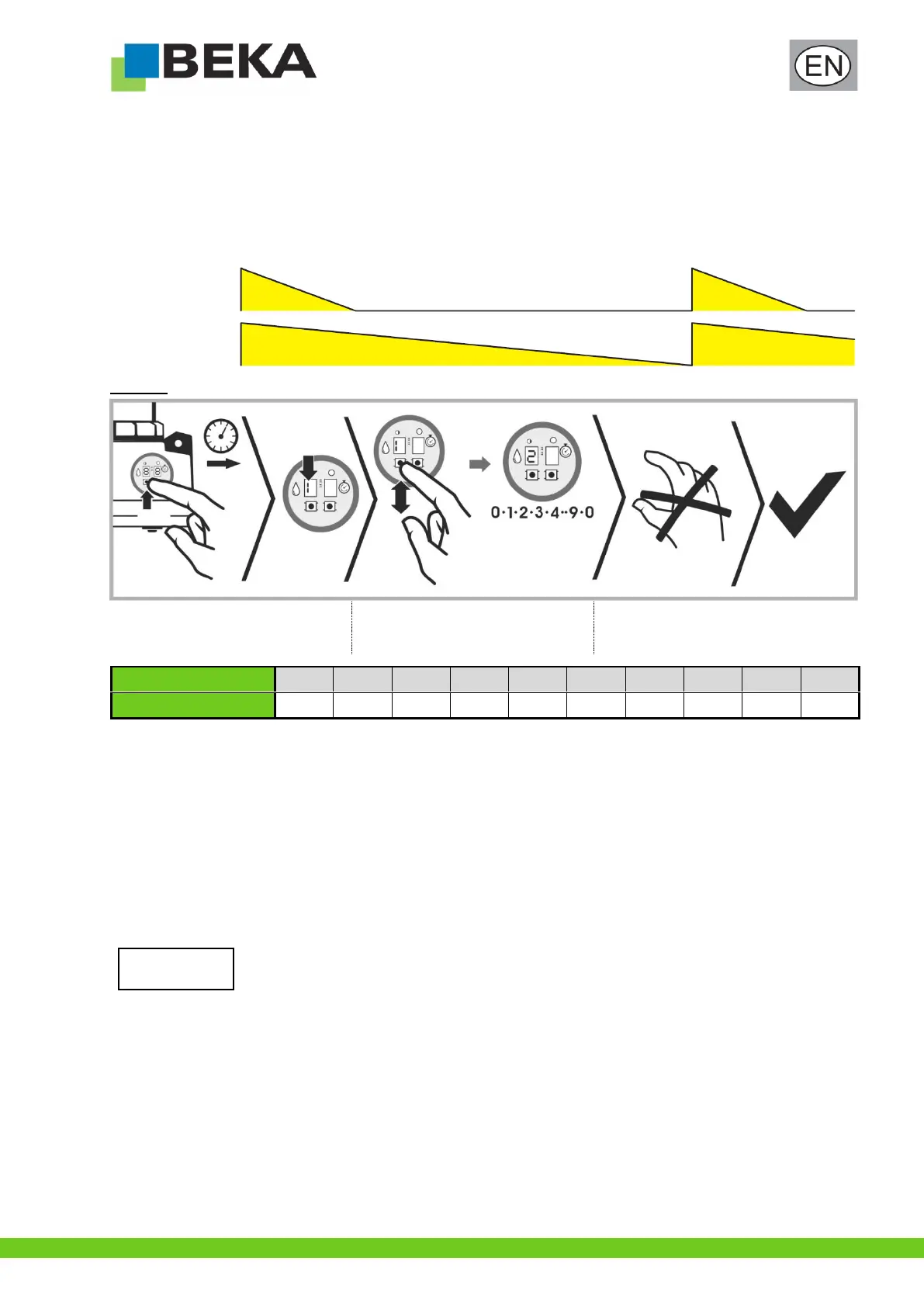

11.4.1 Operational mode of time-dependent lubrication duration P1
The device operates dependent on the set lubrication duration in program P1.
Setting:
Hold down the left control key until the
current setting appears in the left
segment of the display, e.g. “1”
Press the left control key as often as
required until the desired setting is
reached.
The control saves the setting automatically;
no further confirmation is necessary.
Lubrication duration (min)
11.4.2 Operational mode of time-dependent lubrication duration with system pressure monitoring P2
In program P2, the device operates as described in chapter 11.4.1 “Operational mode of time-dependent lubrication duration P1”.
In addition, the operating pressure in the lubrication system is monitored by a micro switch which is attached at the pressure limiting
valve.
If the pressure in the lubrication system exceeds the set value (290 bar), the pressure limiting valve opens and the micro switch is
actuated. The micro switch sends a signal to the control. The device shows the error E5 and signals a malfunction (see chapter
15.1 “Signal displays of the control”).
After eliminating the cause of error, the error must be reset as described in chapter 15.2 “Resetting the error E5”.
The micro switch is connected to the bushing M12x1.
If program P2 is selected, a micro switch must be connected, otherwise the device displays the error E5 and
signals a malfunction (see chapter 15.1 “Signal displays of the control“).
Time-dependent
lubrication duration
Time-dependent
cycle duration
