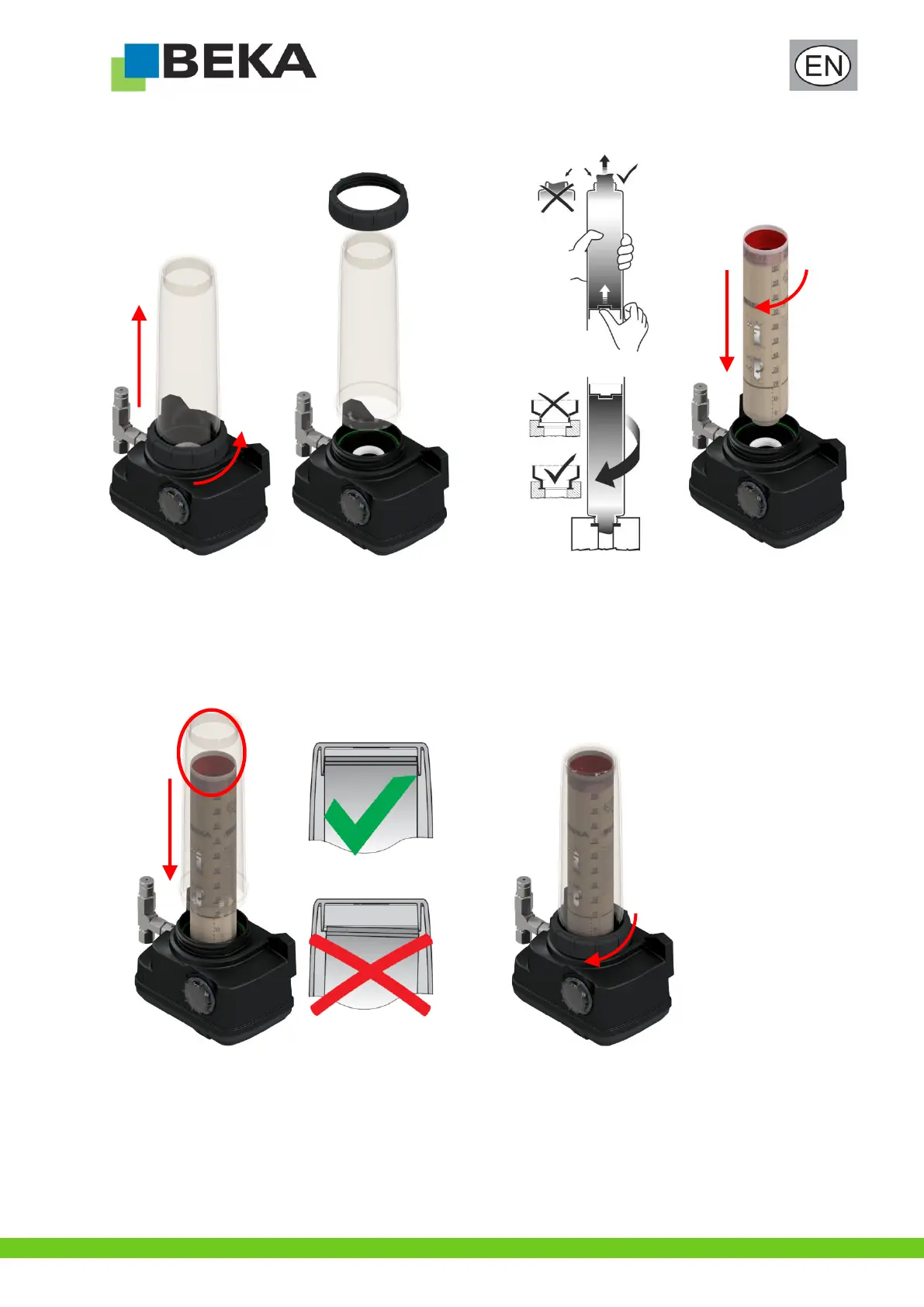

9.1.1 Screwing in or changing the cartridge
1. Clean the nut and the cartridge pipe, then loosen the nut
and remove both.
Unscrew the cartridge if present.
Compare the cartridge to be screwed in with the existing
connection thread, use an adapter if necessary or change
the existing adapter (see chapter 9.1.2. “Changing the
cartridge adapter”).
3. Put on the cartridge pipe, making sure that the cartridge
fits properly in the guide of the cartridge pipe (fig. type S).
5. Set the cartridge size depending on the cartridge capacity
via the display as described in chapter 11.6 “Setting the
cartridge size”.
2. In order to avoid air pockets, push the piston of the
cartridge slightly upwards until lubricant escapes before
inserting it into the device. Then screw the cartridge into
the holder or into the adapter in the device (see also:
sticker on the cartridge).
4. Tighten the nut hand-tight.
