BEKA ZEPTO - 17 Spare Parts

-51- © BEKA 2019 All rights reserved!
BAL_ZEPTO_1019DE_EN.docx
Connection cable
Connection type
Length
Color assignment
Article no.
1x DEUTSCH plug, female,
90° angled
4-poles, open cable end
10 m
Black = supply voltage of pump 12 V DC / 24 V DC
Brown = GND reference potential
Green = intermediate lubrication / release external
Yellow = error output / lamp (max. 200 mA) / GND switching
10144658
1x plug M12x1, 90° angled
4-poles, open cable end
10 m
Brown = sensor supply 12 V DC / 24 V DC
White = not assigned
Blue = GND reference potential
Black = input pulse sensor / micro switch on PLV
10122207
Ventilation element and fitting
Ventilation element Adjustable L fitting
Article no.: 10143709 Article no.: 10105629

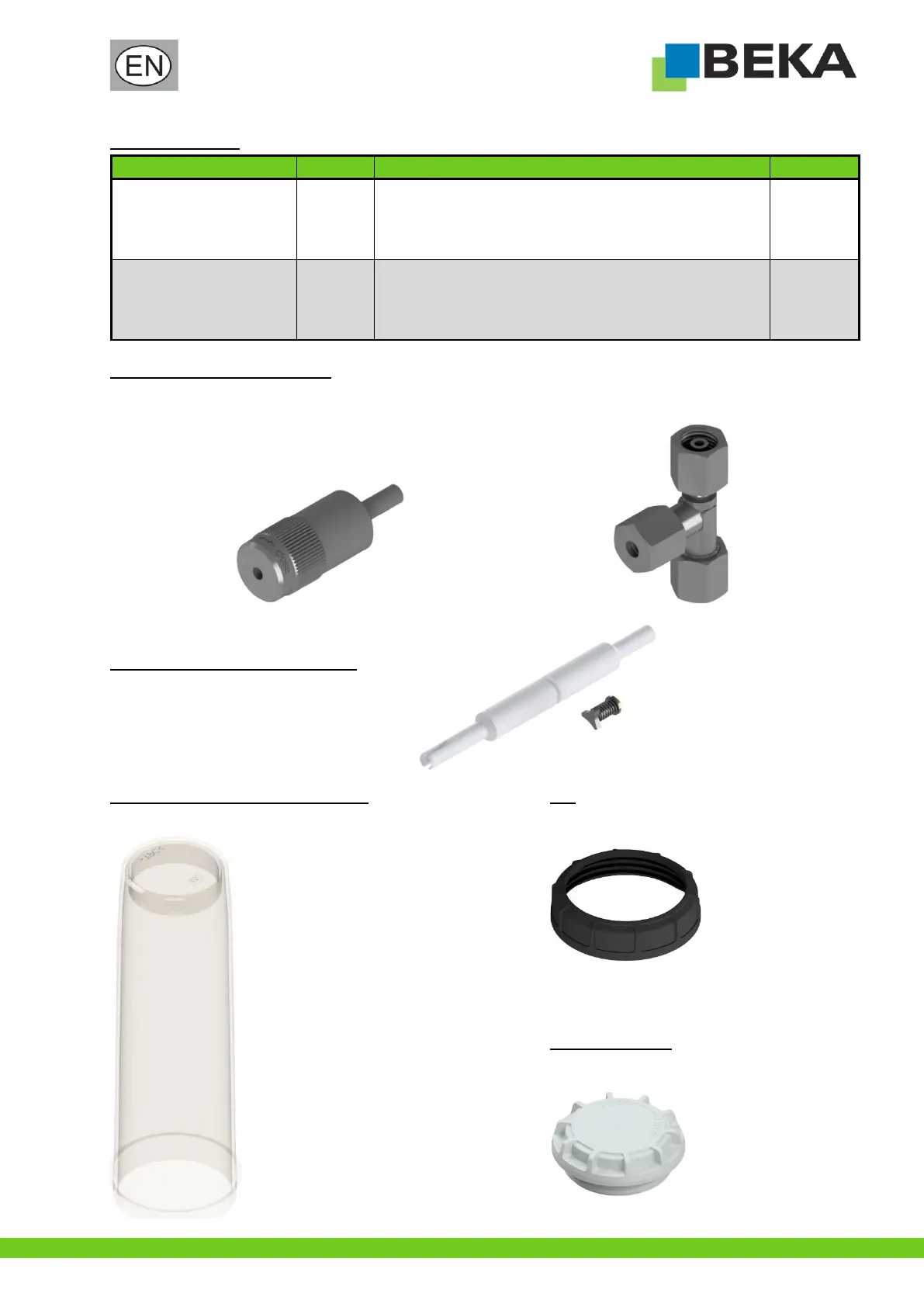

17. Spare parts
Assembly kit for non-return valve
Article no.: 10145292
consisting of:
• Disassembly tool
• Non-return valve
• Manual “Changing the non-return valve”
Cartridge pipe (protective housing) Nut
Article no.: 10139909 Article no.:10140006
Inspection glass
Article no.: 10146925
