Installation

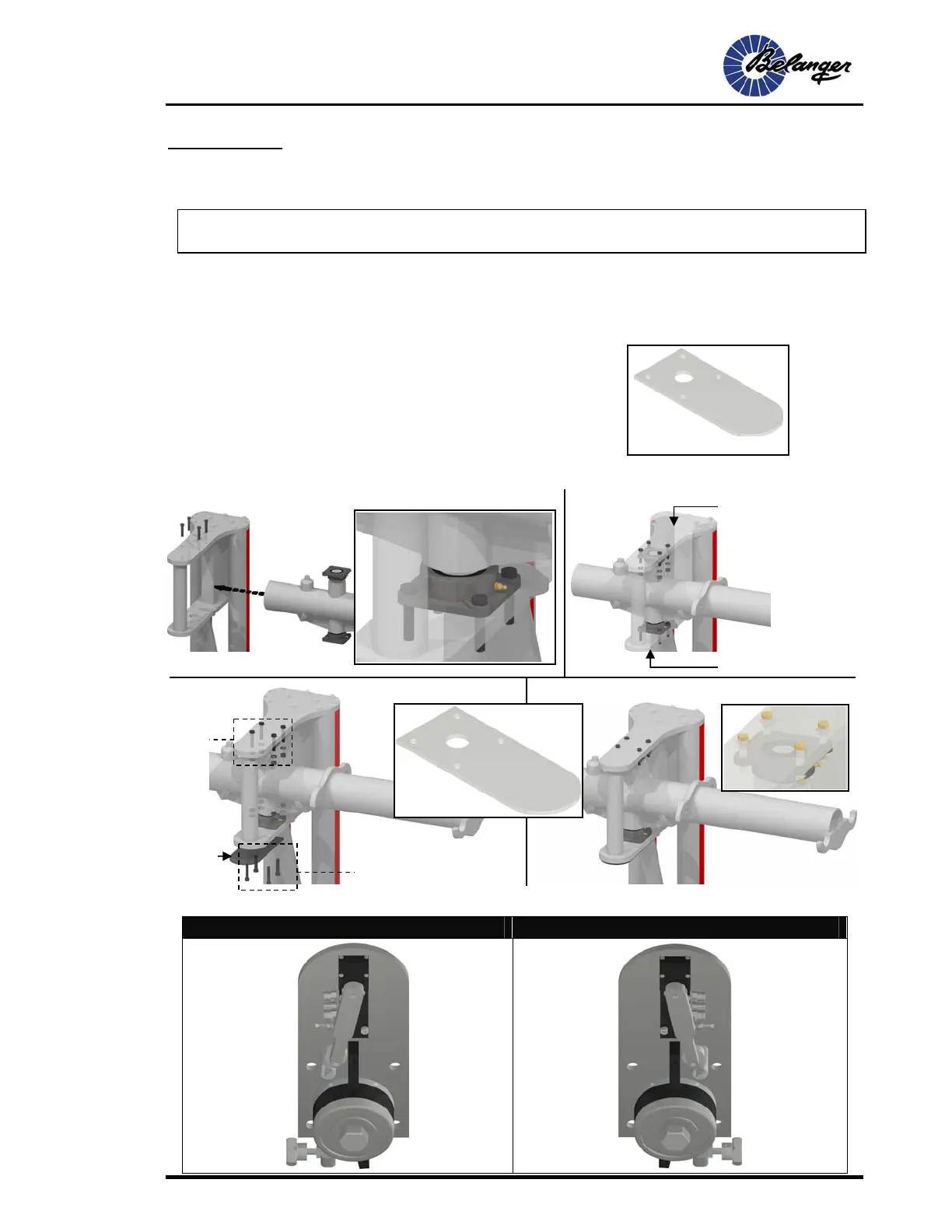

Installing the Booms
Note:
When installing the Sizer Disc, be sure NOT to allow the Anti Seize™ to smear and come
between the Pivot Post and the Sizer Disc.
4) Locate the 9/16-12 x 2-1/2” bolts, lock washers, nuts and the Sizer Plates (shown below).
The four bolts that hold the lower Bearing to the Stand will also hold the Sizer Plate in place.
The bolts on the top Bearing are to come down through the Boom’s Top Pivot-Plate. The
bolts on the bottom Bearing must pass through the Sizer
plate and up through the Boom’s Bottom Pivot-Plate.
5) Lift the Boom into place making sure that the Grease
Fittings on the Bearings are facing the exit of the tunnel.
Install all fasteners into place and tighten all fasteners
on the Bearings. Now snug all of the Bearing Set-
screws.
Driver Side Complete (view from underside) Passenger Side Complete (view from underside)
Sizer Plate
Boom Top Pivot-Plate
Sizer Plate
Bottom Bearing with Bolts
Temporarily in Place
Sizer Plate
Upper Bearing
Bolted in Place
Boom Bottom Pivot-Plate
Bolts up through Sizer Plate and
Bottom Pivot-Plate. Lock washers
and nuts are on top of the Bearing.
Bolts down
through
Pivot-Plate.
Lock
washers and
nuts are on
the Bearing
side.
To Next Page
