Installation

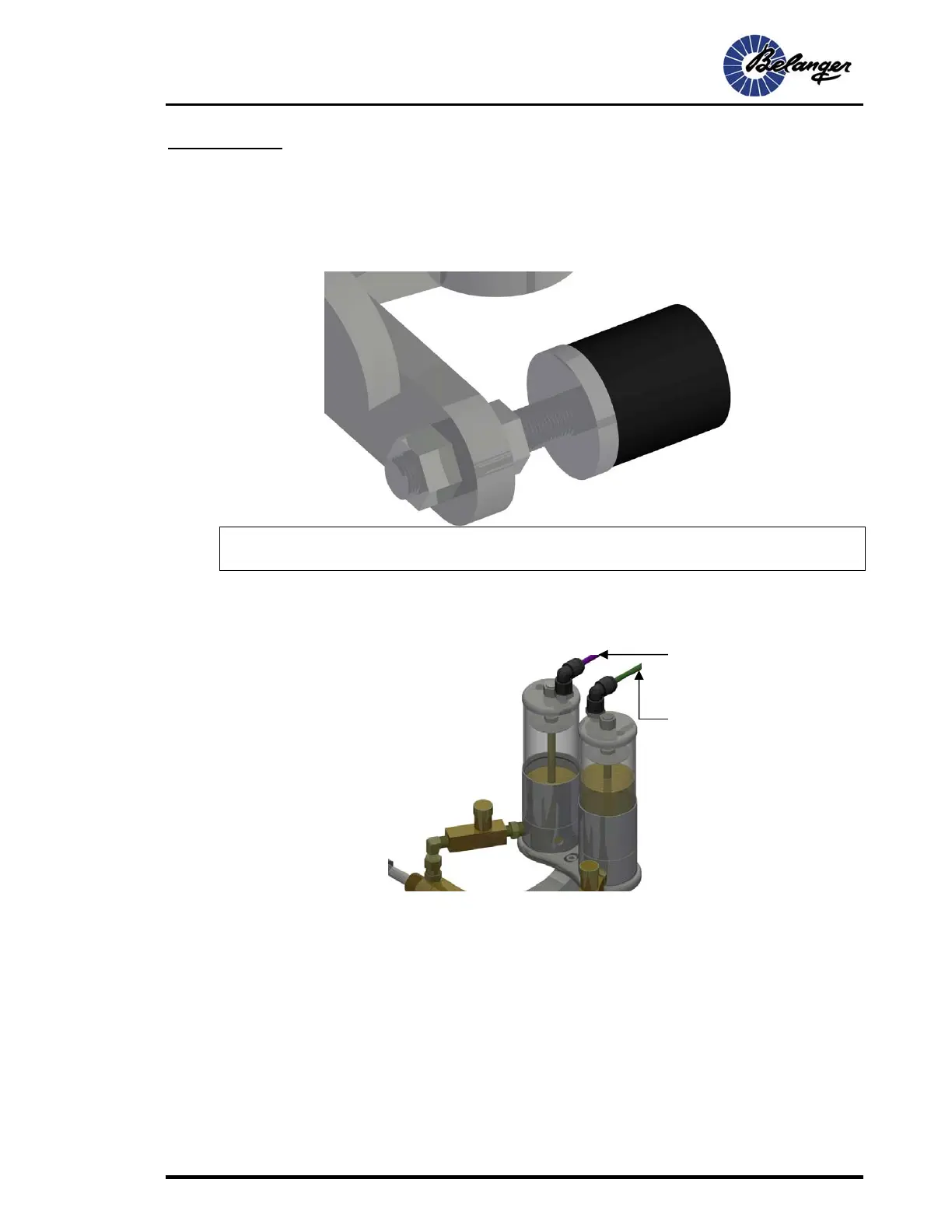

Adjusting the Positive Stops
Positive stops dictate the range of motion for the booms. If set incorrectly, damage may occur to the equipment and/or
vehicles. After the initial setup, they may need to be adjusted for optimum performance.
It is suggested that initial runs are performed with the Positive Stops fully extended as shown below.
Note: The inside Positive-Stops are to be adjusted so that the Shafts are not over center or in the
path of the vehicle.
Utility Connections
Pneumatic (Air) Connections Air-Over-Oil Reservoirs
Airline colors stated are suggestions to aid repairs and trouble-shooting.
Feed from Small Regulator
on the Air Panel (Purple or
Feed from Air Panel (Green)
