QUICKFIRE® WRAP AROUND
40 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Utility Connections for Boom Movement
The pneumatic (air) control can be set up in two different ways to fit your needs considering both driver and
passenger side have their own Air Panels that control the movement of the of the Booms throughout each wash
cycle. Scenario 1 shown below, scenario 2 shown on next page.

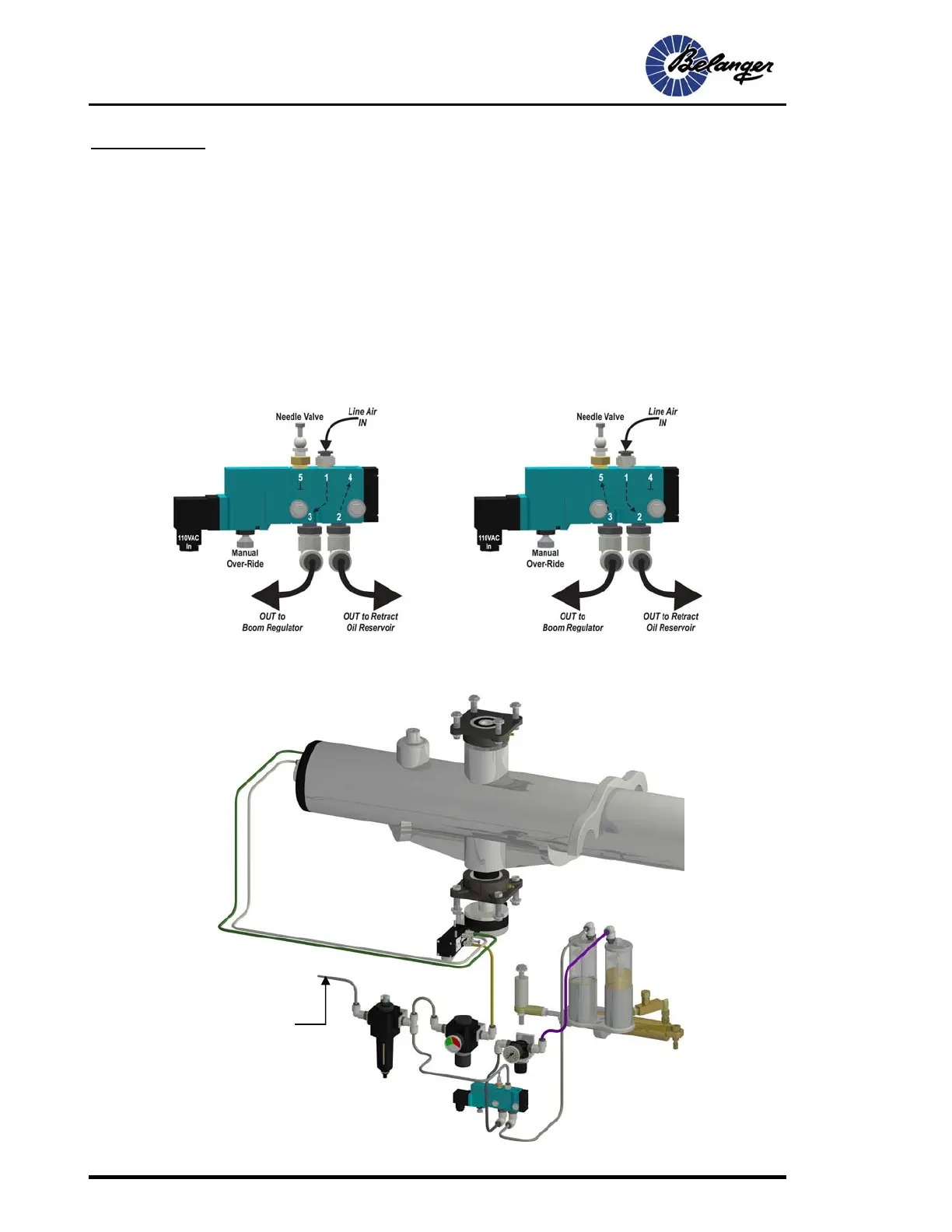

Scenario #1: Default Setup
When shipped from the factory, the default air circuit and 4-Way Valve setup is set so the Booms “rest” in the path of the
vehicles (also know as the “Extend” position).
The 110VAC output that feeds this valve can act as an “Option Switch” to Retract the Booms (get them out of the way of
the vehicles) for a single wash cycle. After which the system will return to its default setting described above.
Default Position (No Power Applied)
Booms Rest in “EXTEND” Position
Activated Position (Power Applied)
Booms Triggered to “RETRACT” Position
Main air supply
90-PSI minimum
120-PSI maximum
To Next Page
