QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 45
Installation
Utility Connections for Side Wheels: Hydraulic
Hydraulic Connections and Wheel Rotation
1) From the hydraulic supply manifold, run hydraulic hoses to the hydraulic fittings on the
distribution block located on the QuickFire® Wrap Booms (two on each side).

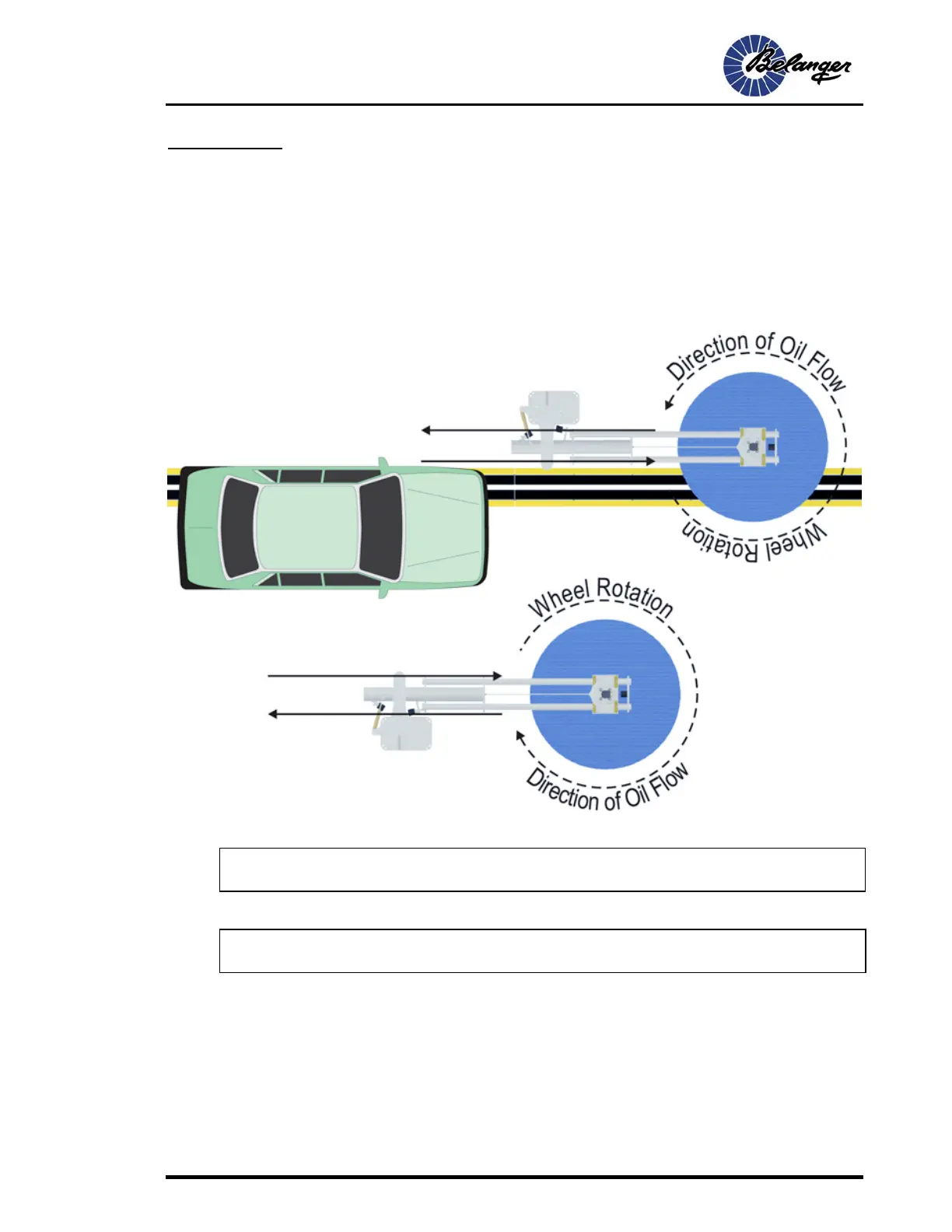

2) Be sure to match the correct hose to the correct fitting allowing the right wheel rotation.
See diagram below.
Note: It is imperative that no foreign materials are in the supply lines before final connections
are made. To be sure of this, the lines should be blown out prior to final hookup.
Confirming Wheel Rotation
Note: Be sure to match the wheel rotation shown above. If the rotation is opposite as show
below, reverse the hydraulic feed lines to the motor.
Return
Return
Feed
Feed
