QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 47
Installation
Utility Connections for Side Wheels: Electric

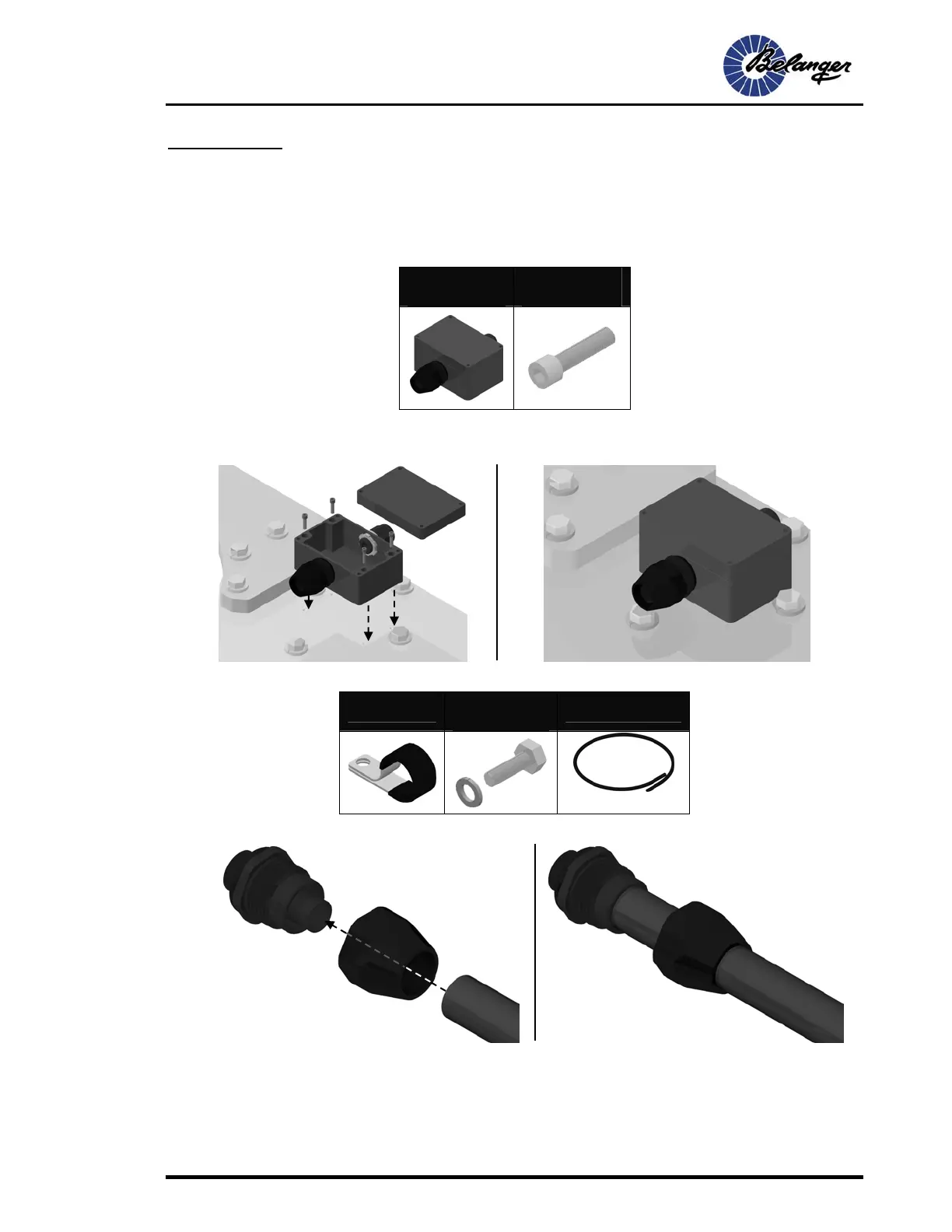

Electrical Connections
1) Locate the gray electrical box the four socket-head cap screws as shown below.
Electrical
Enclosure
1FSTNR-SH767
Socket Head
2) Remove the cover of the enclosure and secure it to the four threaded holes on top of the leg
assembly as shown below.
3) Locate the parts shown below.
Loop Clamp
Cap Screw and
Lock Washer
Conduit
47”
The images below show how to connect the conduit to the fittings.
Before After
Cord
Grip
Base
• Remove the cord grip from the base.
• Slide the conduit through the cord
grip and into the base
Conduit
• Secure the cord grip back into
place
To Next Page
