QUICKFIRE® WRAP AROUND
24 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation

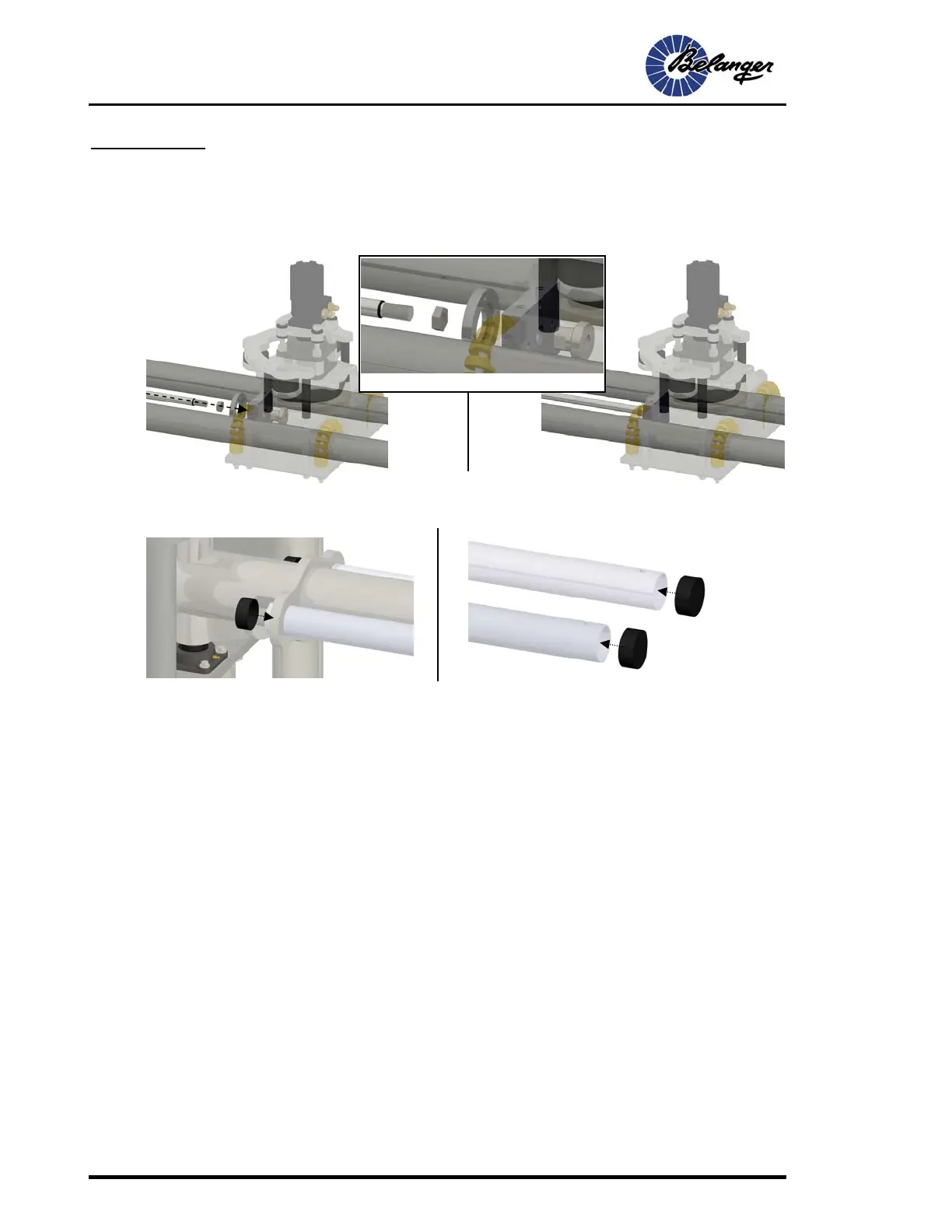

Securing the Head Assembly to the Boom: Hydraulic
1) Pull the rod of the Cylinder and secure the Head Assembly as shown below. Use the shown
Jam Nut to lock the assembly together.
2) Locate the four black plastic “Rail Caps” (3” diameter) and place them on both ends of the
Boom Rails as shown below.
Entrance End Exit End
Before After
Sequence and Orientation of show parts
