QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 25
Installation

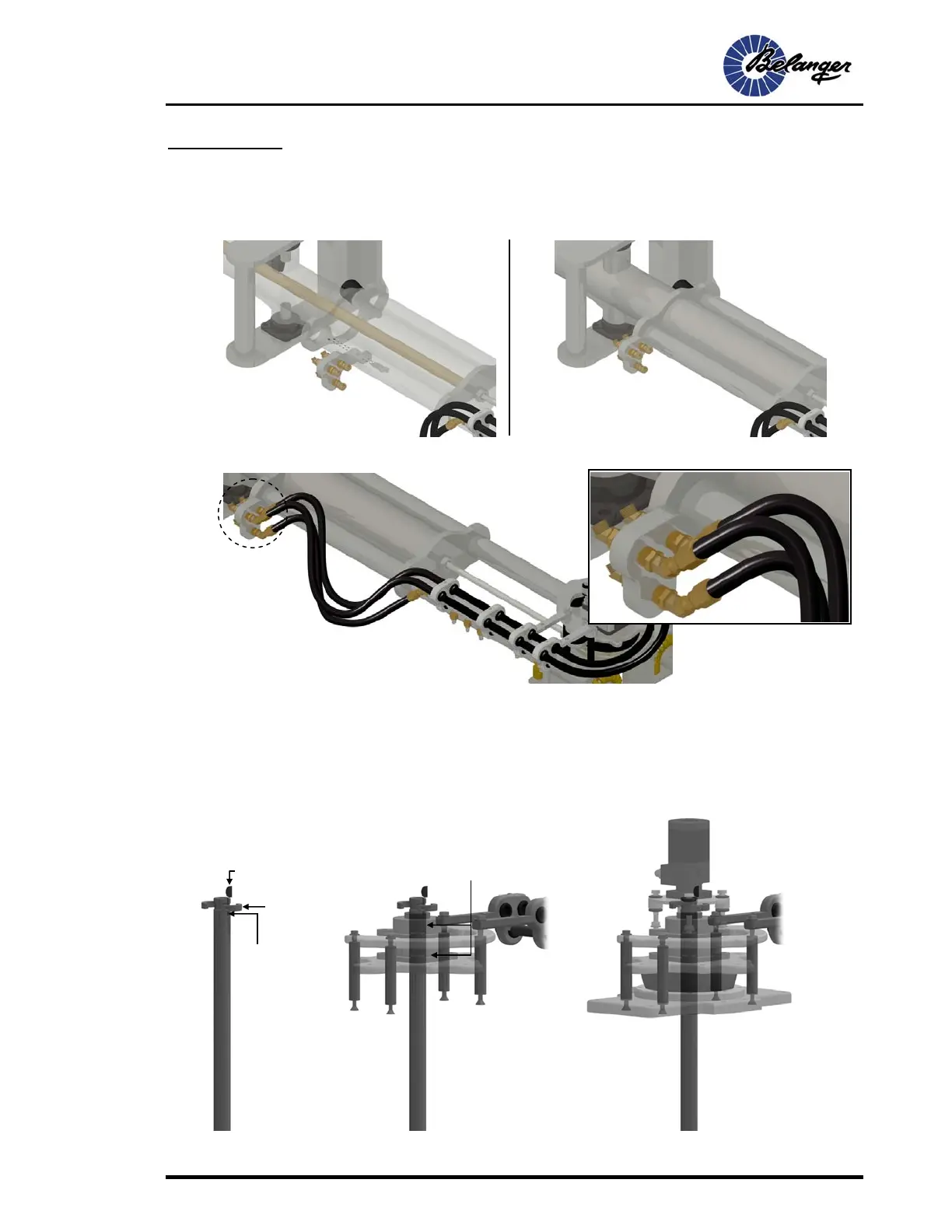

Securing the Head Assembly to the Boom: Hydraulic
3) Secure the above assembly into place as shown below.
4) Connect all three hoses at the base of the Boom as shown below.
Installing Shaft Components: Hydraulic
The shaft is held in place using a Woodruff Key, two setscrews in each of the two bearings and a split-locking collar. There
is a groove in the shaft to accommodate the locking collar. The setscrews in the bearings are shown in a close-up image
on the next page. See the image below to understand how the complete assembly goes together then follow the
instructions on the next page.
Before
After
Shaft Groove
Locking Collar
Bearing Woodruff Key
To Next Page
