QUICKFIRE® WRAP AROUND
26 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation

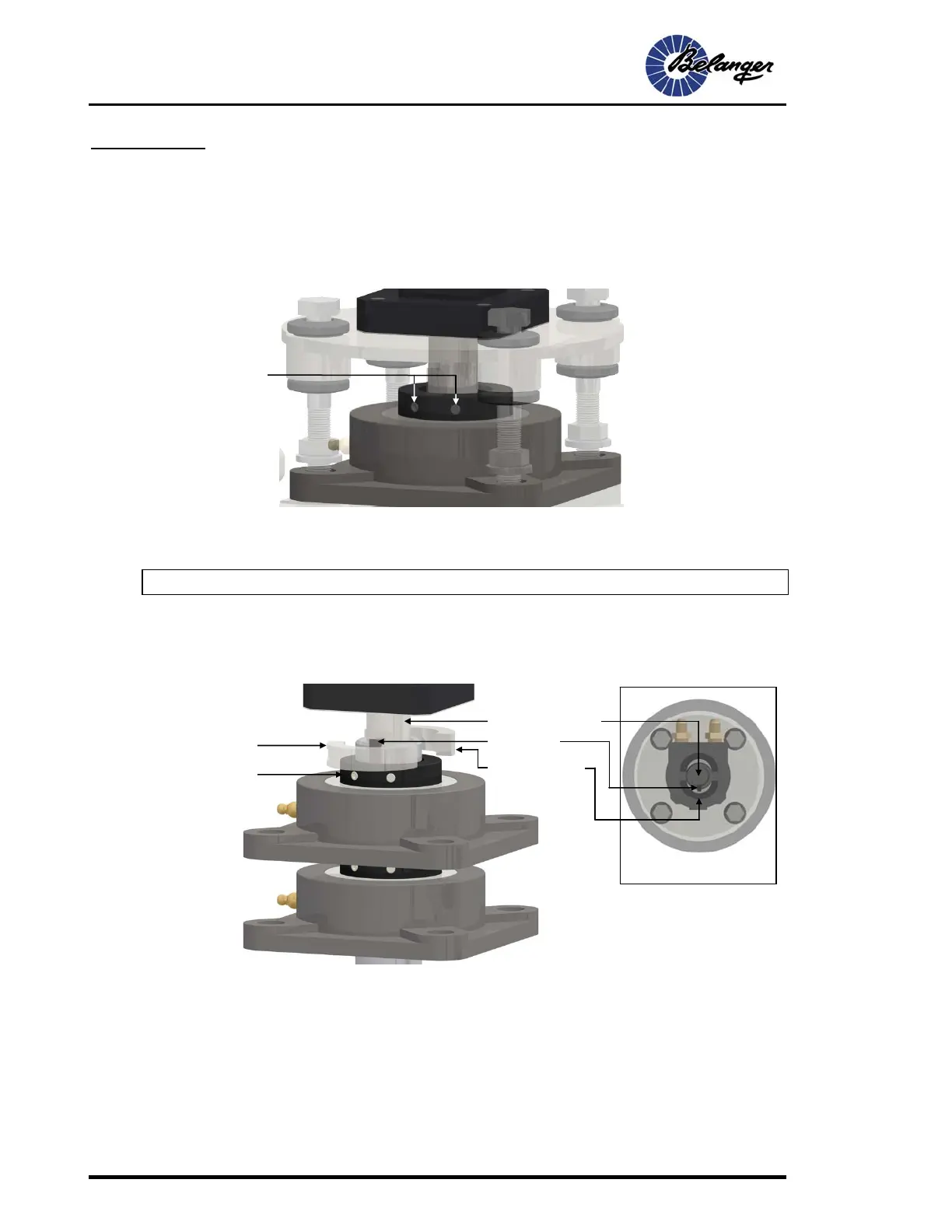

Securing the Head Assembly to the Boom: Hydraulic
Locate the two side-wheel shafts.
1) Loosen both setscrews in each of the shaft bearings.
Close-up view of head assembly.
4) Locate the accessory box and separate its contents.
5) Slide the shaft up through both bearings until the shaft of the hydraulic motor is inside of the side-
wheel shaft.
Note: Woodruff Key is to be inserted in the Hydraulic Motor Shaft.
6) Slide the supplied Woodruff Key into the slot at the top of the shaft.
7) Secure the supplied split-locking collar into position as shown below. This will hold the shaft in
place. Be sure that the Woodruff Key is positioned at 90° to the split in the collar as shown
in the image below.
8) Tighten all the setscrews on both bearings.
Bearing set screw
(typical)
Split locking collar
Shaft bearing
Top View
Hydraulic Motor shaft
Woodruff key
Split locking collar
