QUICKFIRE® WRAP AROUND
30 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Installing Side Wheel Hubs
The aluminum hub configuration requires the installation of the lower hub first followed by the installation of
the upper hub. Once the two hubs are installed, you may then install the Wash Clips and Neo-Tex.

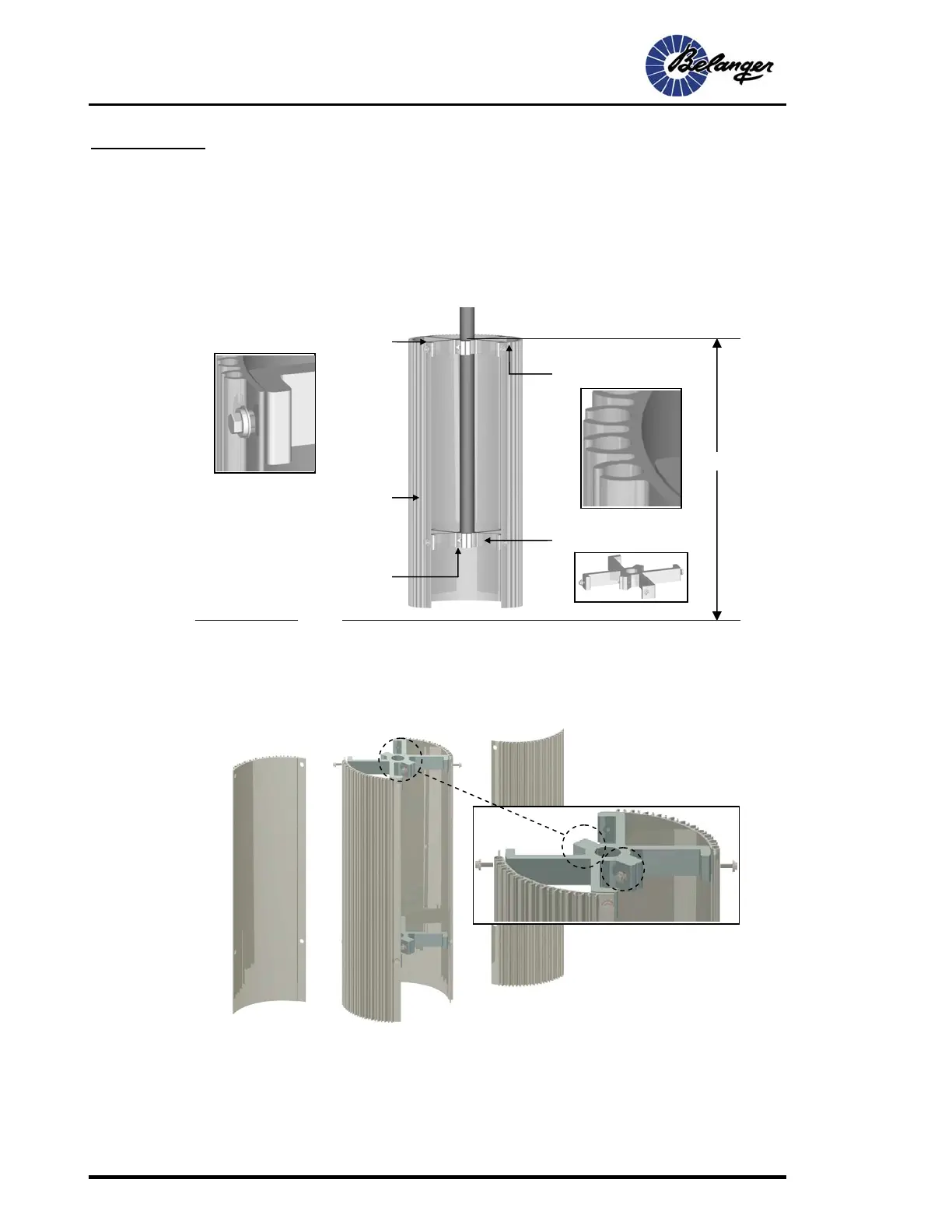

Lower Hub Installation Overview
The following is an overview of the naming and placement typical to Hubs.
Lower Hub Installation
1) Locate the 12” diameter x 28-1/4” tall Lower Hub Assembly and remove the Skins that will reveal
and allow access to the inner fasteners on the Spiders as shown below.
Spider (typical)
Spider assembly flush to top of hub
Skin (typical)
36”
Floor
Open end of “C” Channel
Spider Inner fasteners
To Next Page
