QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 29
Installation

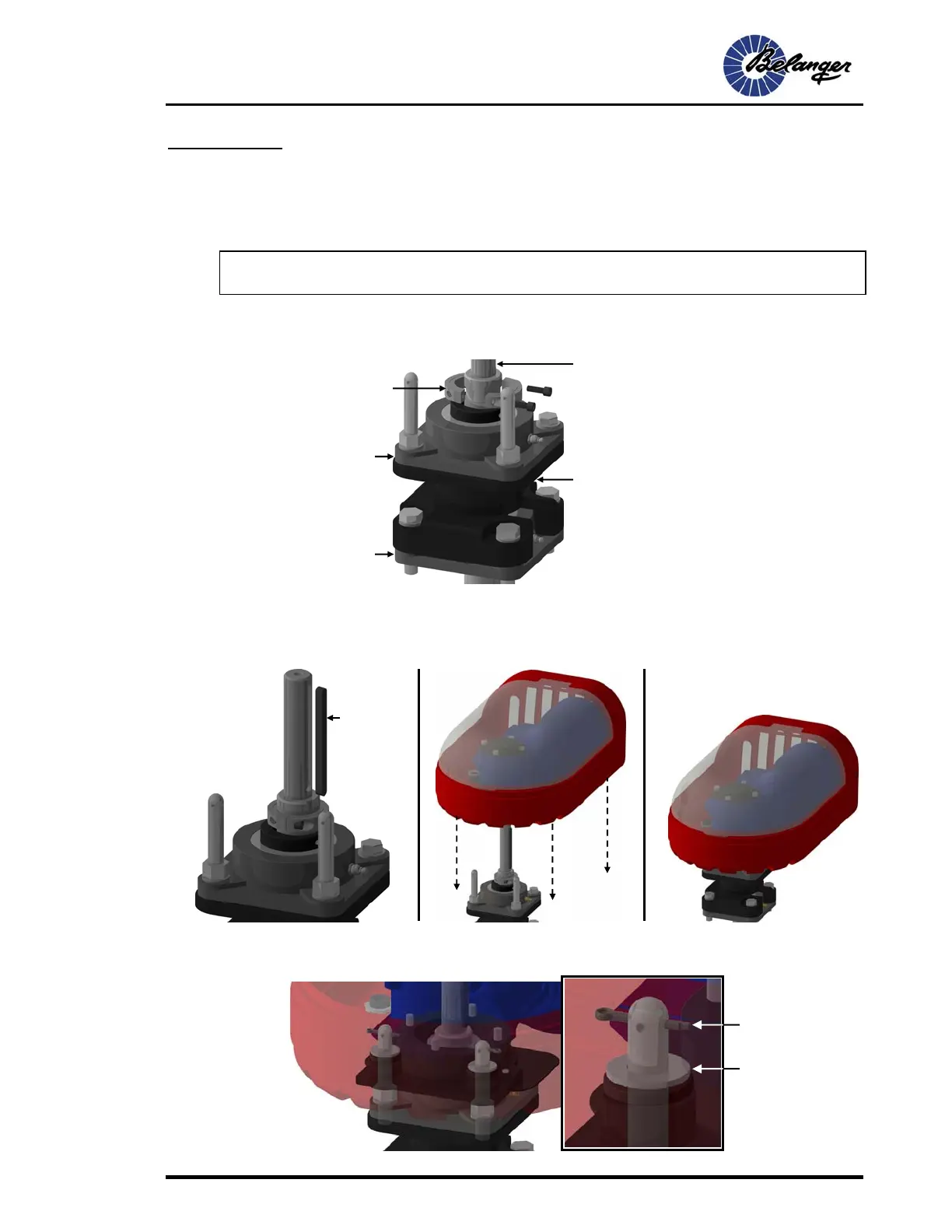

Securing the Head Assembly to the Boom: Electric
9) Slide the shaft up through both bearings until the groove for the locking collar has cleared the
upper bearing.
Note: You may need to loosen the bearing fasteners to install the shaft. After the shaft is
installed, re-tighten the fasteners.
10) Place the key locking collar and secure it into place.
11) Allow the shaft to slide down until the locking collar rests on the upper bearing.
12) Tighten all the setscrews on both bearings.
13) Place the key into the shaft slot. Apply Anti-Seize™ to the shaft, the key and the key slot.
14) Slide the complete Motor housing Assembly into place over the shaft studs as shown below.
15) Locate the 2 flat washer and 2 cotter pins and install them as shown below. Bend the ends of the
cotter pin to lock it into place.
Key (apply
Anti-Seize™
to the key and
the key slot)
Split locking collar
Upper shaft bearing
Motor shaft
Lower shaft bearing
Bearing Mount
Cotter Pin (typical)
Flat Washer (typical)
To Next Page
