QUICKFIRE® WRAP AROUND
66 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Maintenance
General Replacement Information
Hydraulic Hose Replacement

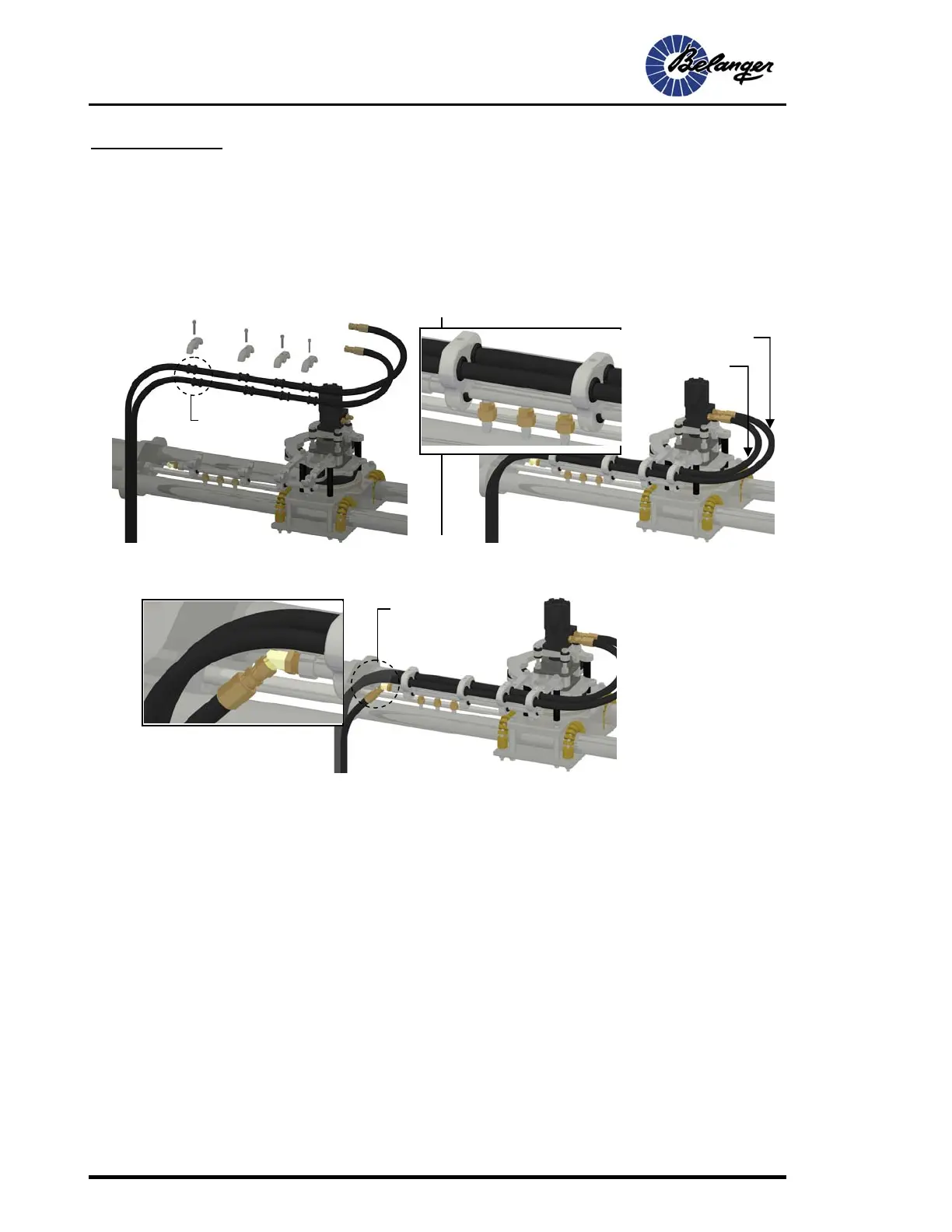

1) Locate the parts shown below (2 for each per side).
2) Secure the above items into place as shown below. The 109-1/2” Hose goes on the
inside and the 114-1/2” Hose goes on the outside.
3) Secure the 60” Hose (used for water) to the Water manifold (bottom/center) as shown
below.
4) Locate the parts shown below (2 for each per side).
Before After
109-1/2” (inside)
114-1/2” (outside)
Slit Grommets to go
around Hoses
Secure 60” Hose to
Water manifold
