Maintenance
General Replacement Information
Spherical Bearing Replacement Tip

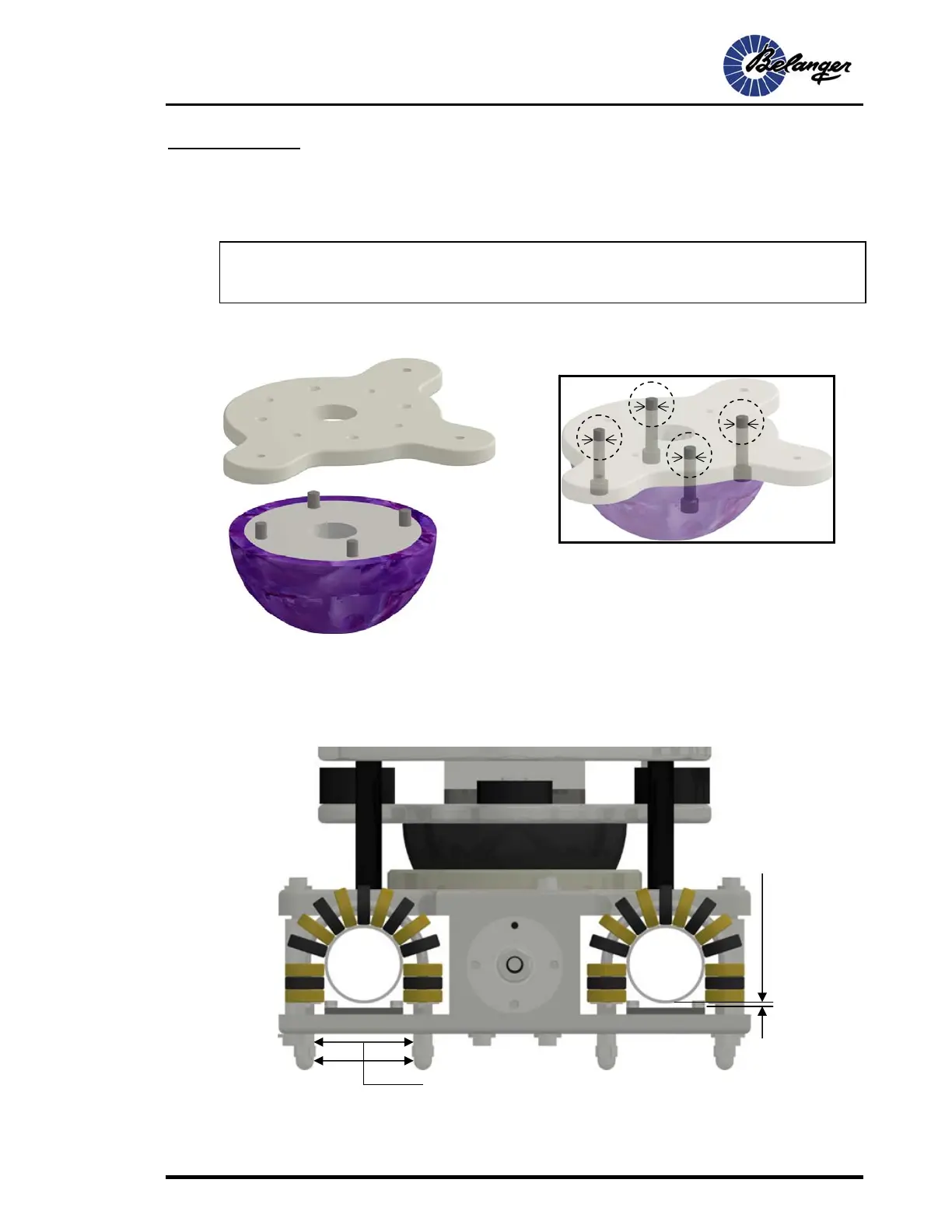

Note: Whenever replacing the Electric Motor, Four-Bolt bearings, or making any adjustments
to the Torque Plate be sure not to over tighten the bolts that go through the Spherical
Bearing. Doing so may damage or crack the bearing as shown below.
When tightening the long bolts on the Spherical Bearing, tighten until the bolt barely touches the bearing. Over
tightening may damage or crack the bearing.
Head Assembly Bearing Adjustment
If for any reason the Head Assembly has to be removed, after replacing it adjust the height of
the Head Assembly to the location described below by tightening or loosening the nuts on the
underside.
Set between 1/8” to 3/16” between
the tube and the skid plates
Tighten or loosen these nuts to adjust height.
Once set, be sure to tighten the locking nut.
Adjust height at all four locations.
Head Spherical Bearing Plate
Spherical Bearing
