QUICKFIRE® WRAP AROUND
50 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Utility Connections for Side Wheels: Electric
Water Feeds

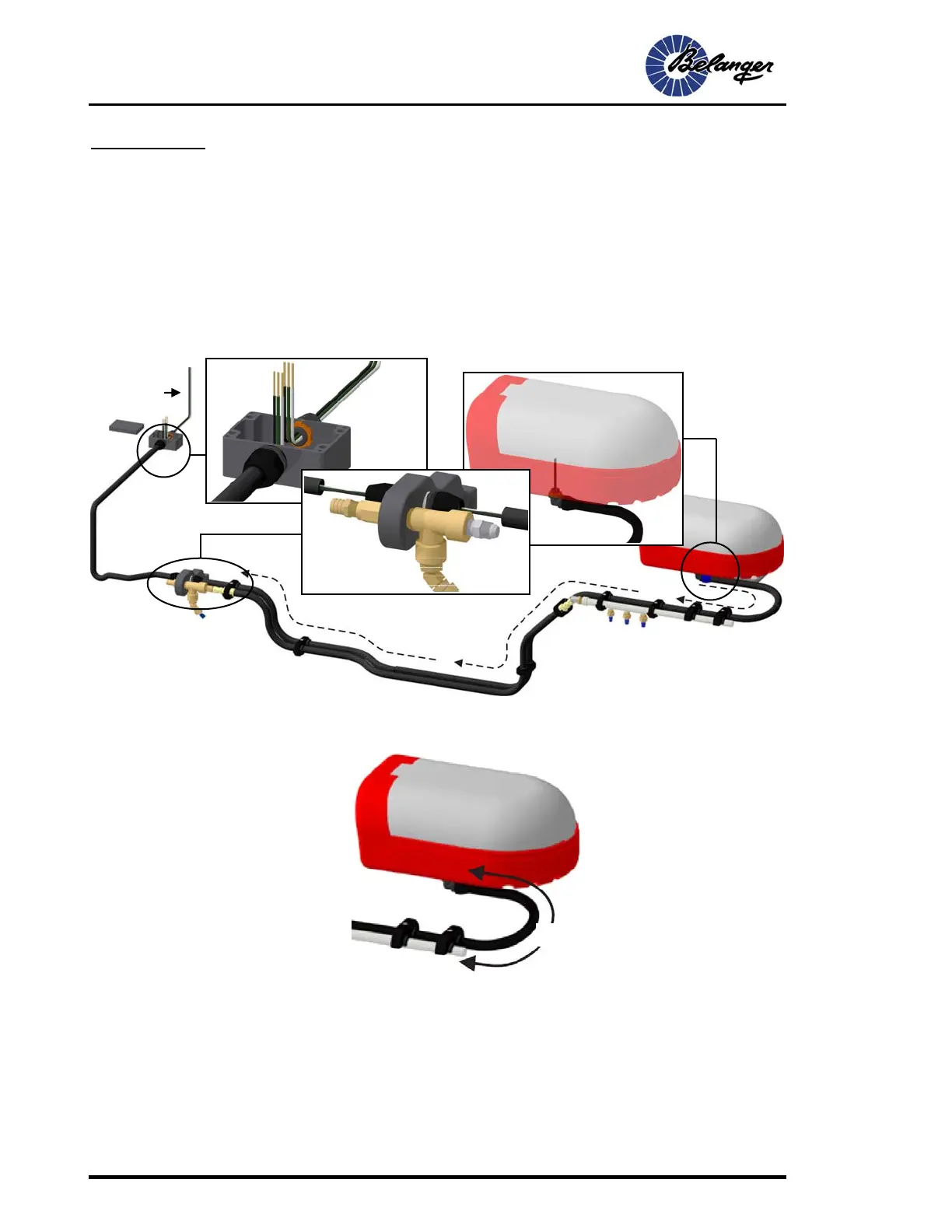

1) Unwrap the hose from around the Head Assembly and run it through the split grommets as shown
below and follow the shown path all the way to the junction box atop the leg assembly. Do not
tighten the clamps together until the conduit has been adjusted.
2) From MCC Integra system panel, (see wiring schematics) drop the wiring 208-230VAC to the
electrical boxes on the top of the two QuickFire wrap legs you installed.
3) Confirm that there is 20” of conduit at the area shown below and tighten all of the clamp fasteners.
Tighten all cord grips.
4) When feeding wiring through cord grip in electrical boxes, use wire nuts and electrical tape to
terminate wiring (see wiring schematics located in MCC panel).
1. From motor, down
through conduit
2. From one conduit, through
fittings and through 2
nd
conduit
3. Use wire-
nuts to
connect to
main power
Main power
from drop
20”
To Next Page
