QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 51
Installation
Utility Connections for Side Wheels: Electric
Water Feeds

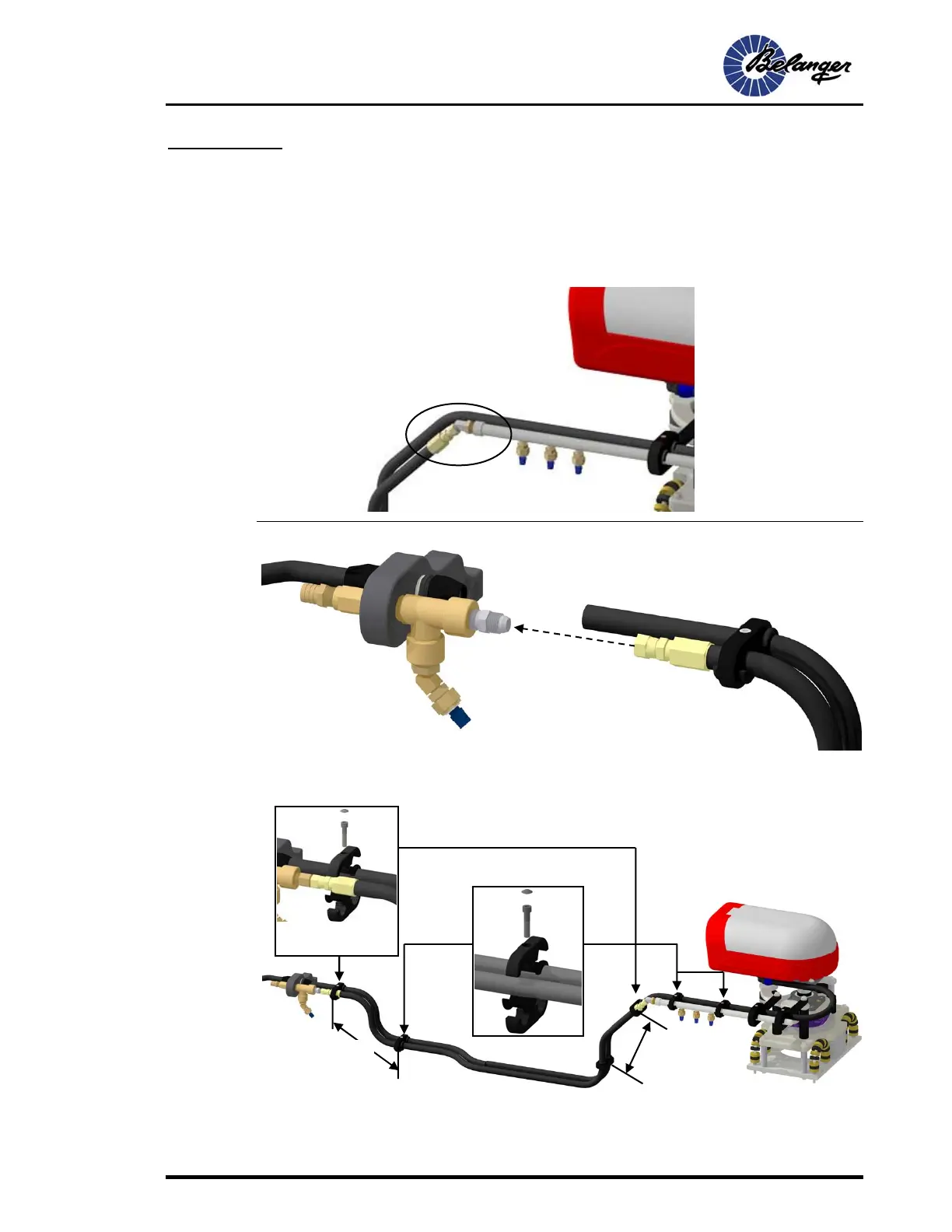

5) Secure one end of the water hose to the end of the manifold and the other end to the secondary
manifold as shown below.
6) Locate the four 2-piece clamp assemblies, four 1/2 grommets and four split grommets. Use them
to join the hose and conduit together at the locations shown below. Once all four are in place,
place one of the small plastic caps on top of each fastener.
Connect the other end
of the water hose here
Connect one end of
the water hose here
12”
12”
Place this one directly
over the hose fitting
To Next Page
