QUICKFIRE® WRAP AROUND
20 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation

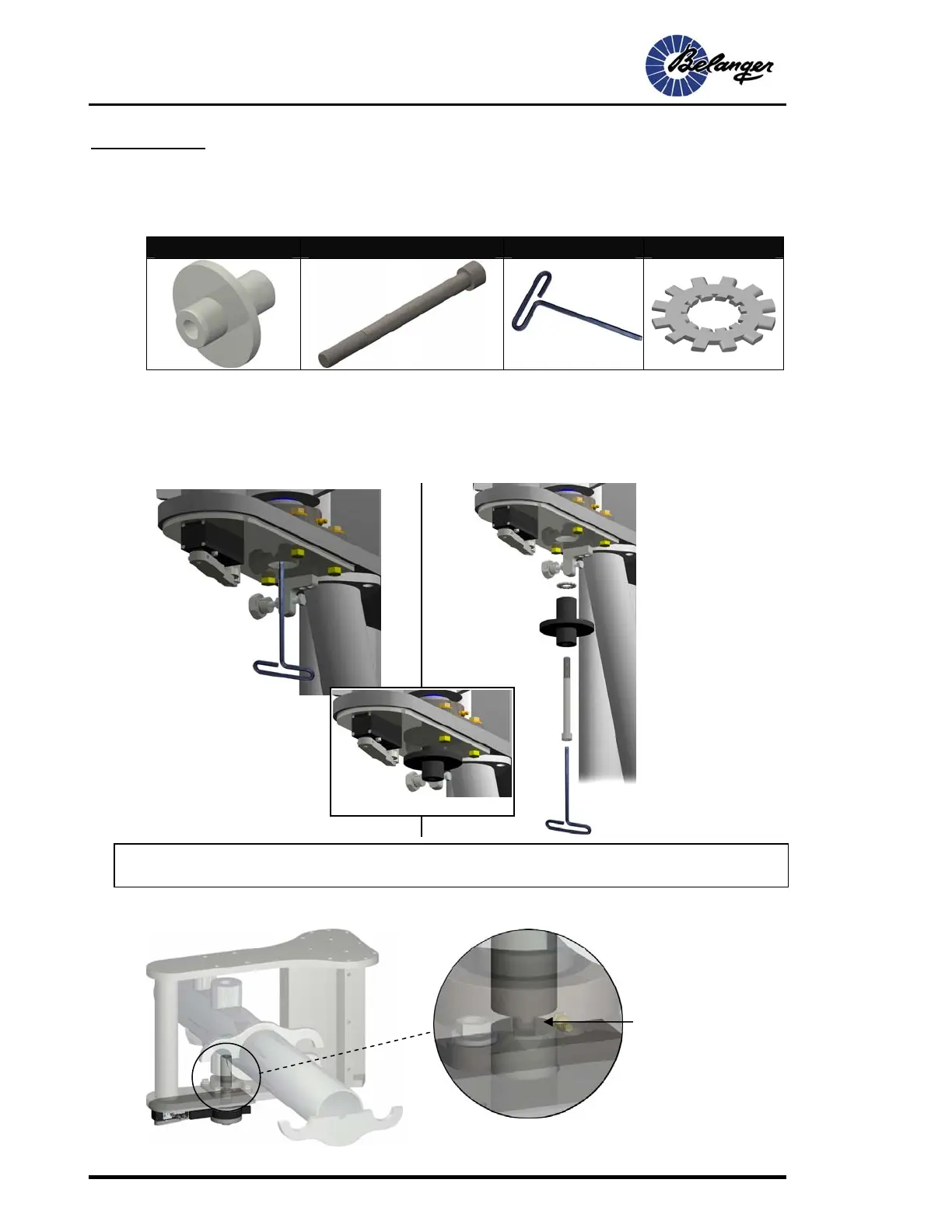

Installing Boom Components
1) Locate the following components (2 of each) and an Allen™ wrench.
Sizer Shaft Weldment 1/2-13 x 6” Socket Head Bolt 3/8” Allen™ Wrench Lock Washer
Field Supplied
2) Using the previously mentioned Allen™ wrench, remove the bolt from the lower Bearing.
Secure the Sizer Disc Shaft Weldment in place using the 1/2-13 x 6” bolt as shown below.
SIZER BOLT MUST BE TIGHT!
3) The Internal lock-Washer shown goes between the Lower pivot Shaft and the Sizer Disc-
Shaft Weldment. It insures that the Sizer moves synchronized with the Booms movement.
Note: When installing the Sizer Shaft Weldment, be sure to NOT allow the Anti Seize™ to spread
and get between the Pivot Post and the Sizer Shaft Weldment. See image below.
SIZER DISC ASSEMBLY MUST BE TIGHT AND MOVE WITH THE BOOM!
Step 2
Be sure not to allow
Anti-Seize™ in this area
Step 1
Disc in Place
To Next Page
