Installation

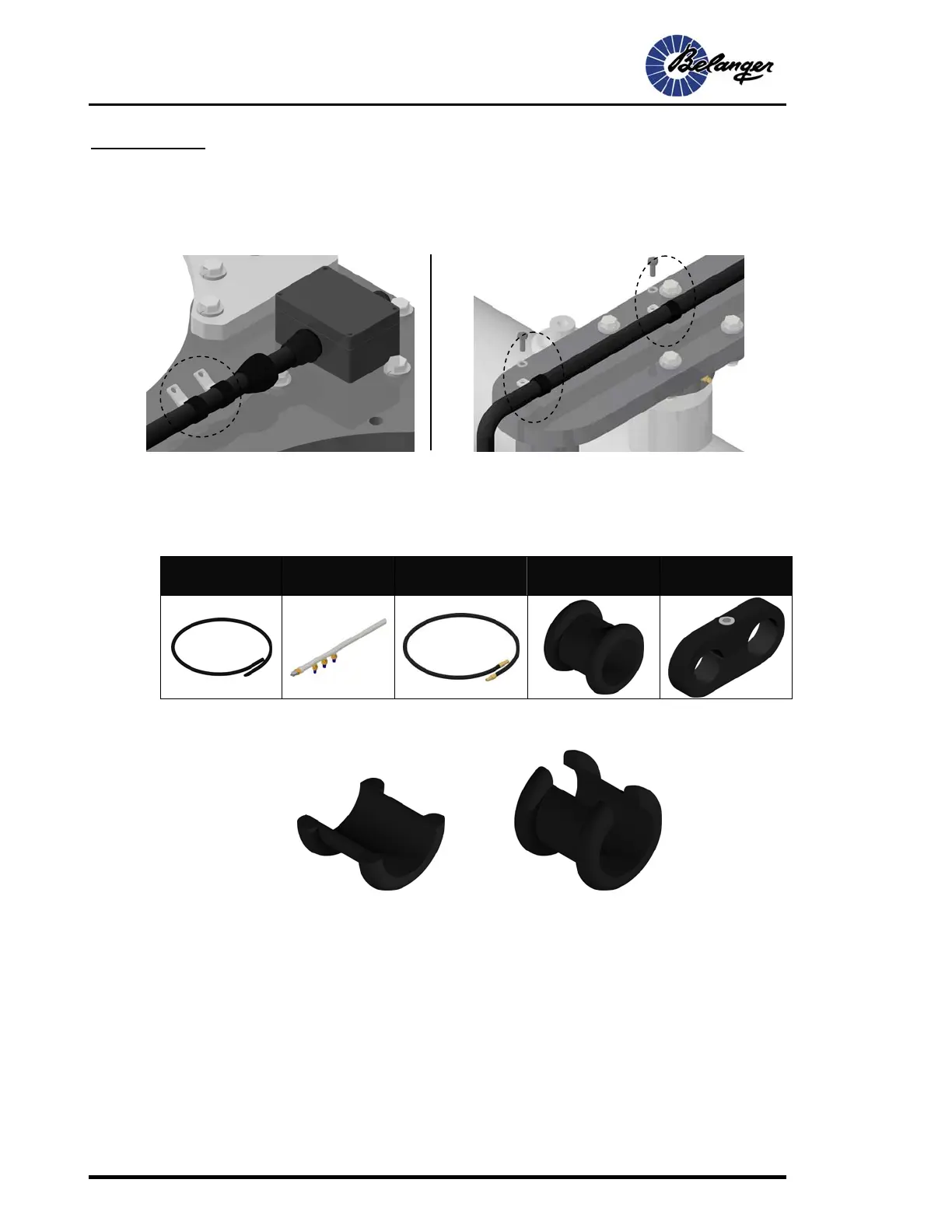

Utility Connections for Side Wheels: Electric
4) Slide the two clamps over the conduit in the orientation shown. Secure the conduit into the fitting of
the electrical enclosure. Fasten the loop clamps into the threaded holes as shown below.
5) Repeat this process on the other side
Water Manifolds
1) Locate 110” black conduit with18FT of wire, the 60” black water hose, the water manifold and 12
rubber grommets. Also fasteners (8).
Conduit (110”) Water Manifold
Black Water Hose
(60”)
Grommet (uncut)
2-Piece Utility
Clamp
2) Cut four of the grommets in half, creating eight pieces. Cut a split down the side of the remaining
eight grommets. See images below.
Slide Clamps
Over Hose
Secure the Loop
Clamps
1/2 Grommet
Split Grommet
To Next Page
