QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 35
Installation

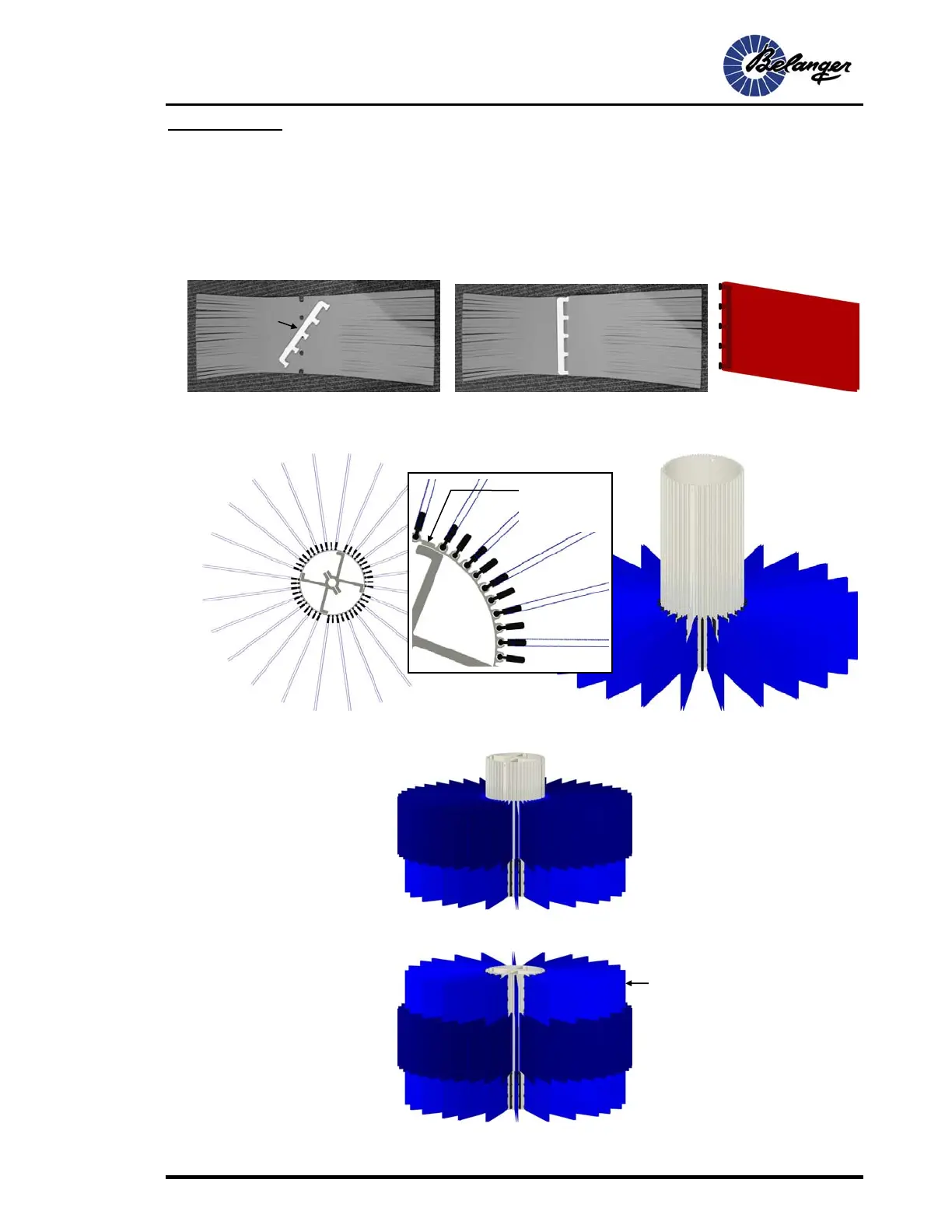

Installing Cleaning Material
Lower Hub Fill (Neo-Tex and Nylon Brush fill)
1) Locate 24 of the 33” x 8” Neo-Tex® pieces and twenty 8” Wash Clips.
2) Place the Wash Clips in the center of the pack as shown below. Fold the Neo-Tex® pieces in half
and slide the Wash Clips “C” Channels.
3) Fill every other “C” Channel slot as shown below. Make sure the Packs are pushed all the way to
the bottom of the hub.
4) Fill all of the opposing slots with Wash Clips as shown below.
6) Locate 44 of the Nylon Brush packs and fill every slot in the second row as shown below. The
Nylon Brush Packs will load by sliding the “Welt” in the “C” Channel.
7) Using 24 more of the 33” x 8” Neo-Tex® pieces and 8” Wash Clips. Fill every other slot in the third
row as shown below.
Hub Overhead View
The “fastener
locations” acts as
a Wash Clip
Neo-Tex®
Wash
Clip
Insert Wash
Clips into
Neo-Tex®
holes
Fold Neo-Tex® in
half to slide into
“C” Channels
24 (33” x 8”) Pieces of
Neo-Tex® Folded in half
24 Wash Clips
44 Nylon Brush
Packs
24 (33” x 8”) Pieces of
Neo-Tex® Folded in half
24 Wash Clips
