Installation
Utility Connections for Side Wheels: Electric
Water Connections

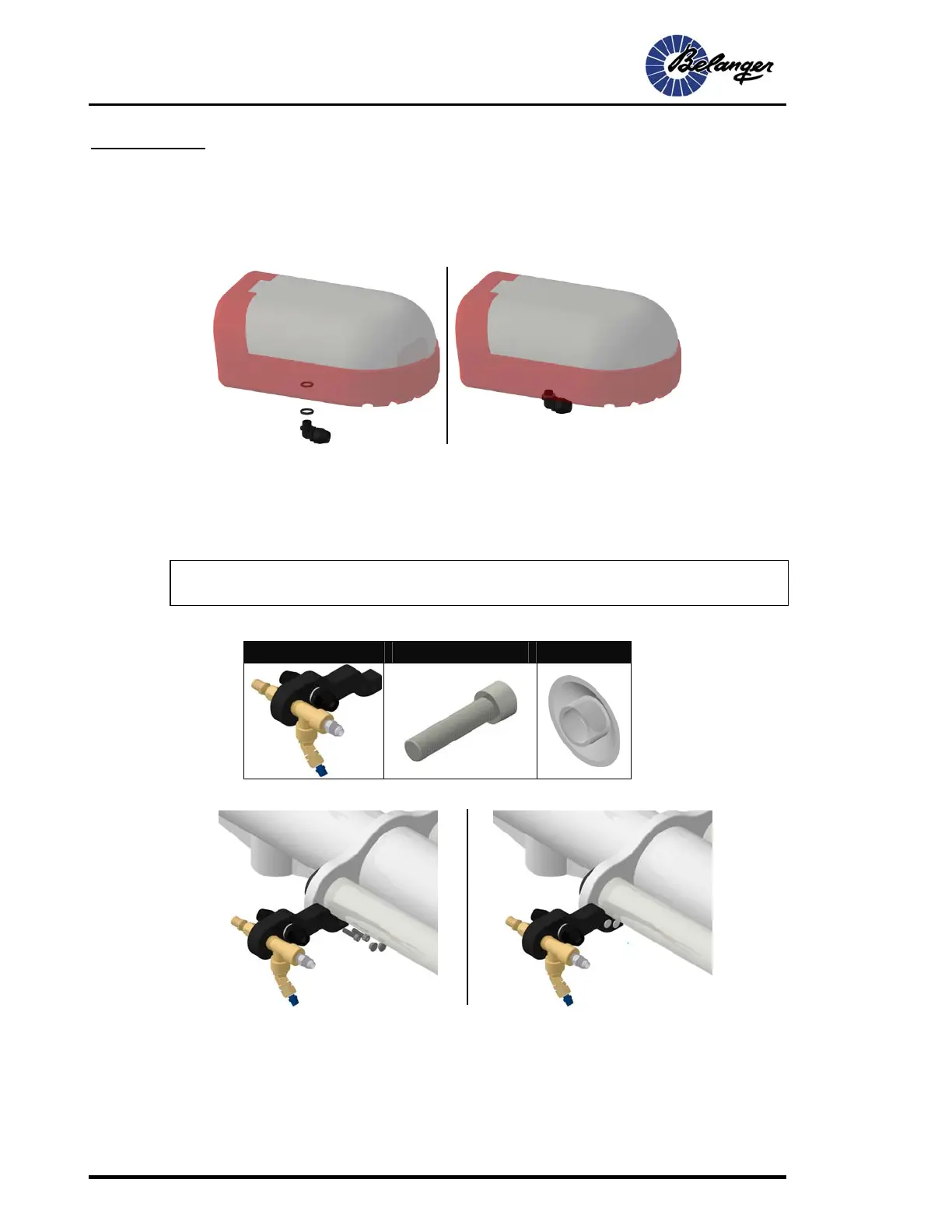

1) Locate 1/2”, 90° liquid-tight conduit fittings and install into covers as shown.
2)
Slide fitting caps onto the 20” black conduit from the boom utility mounts. Feed wire through
conduit fittings into motor covers. Slide the black conduit into fittings and secure cap.
3) Remove gearbox/motor electrical box covers.
4) Feed wires through motor cord grip all the way to the ring terminus and secure to the (4) wire
leads.
Note: See electrical schematics in MCC Panel for terminating wire lends and wiring
schematics on motor/gearbox and inside motor/gearbox junction box cover.
5) Locate the following parts and secure them into place as shown below.
Manifold Assembly 3/8-16 x 1-1/4” SHCS 1CAP124
Before After
