QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 33
Installation
Installing Cleaning Material

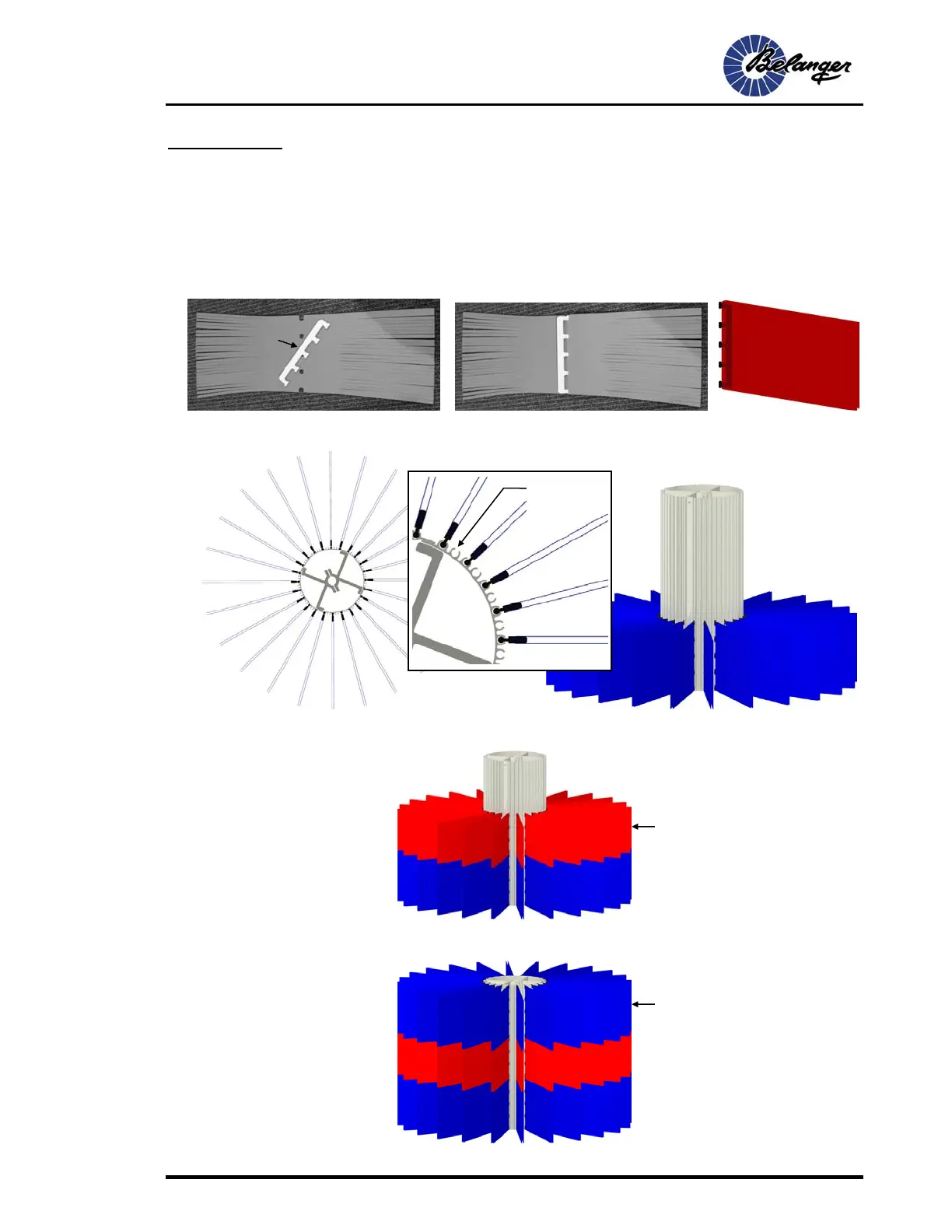

Lower Hub Fill (all Neo-Tex fill)
1) Locate 24 of the 33” x 10” Neo-Tex® pieces and 10” Wash Clips.
2) Place the Wash Clips in the center of the pack as shown below. Fold the Neo-Tex® pieces in half
and slide the Wash Clips down into the “C” Channels.
3) Fill every other “C” Channel slot as shown below. Make sure the Packs are pushed all the way to
the bottom of the hub.
4) Locate 24 of the 33” x 8” Neo-Tex® pieces and 8” Wash Clips. Fill every other slot in the second
row to set on top of the previous row as shown below.
5) Using 24 more of the 33” x 10” Neo-Tex® pieces and 8” Wash Clips. Fill every other slot in the
third row to set on top of the previous row as shown below.
Hub Overhead View
Leave every
other slot em
p
t
y
Neo-Tex®
Wash
Clip
Insert Wash
Clips into
Neo-Tex®
holes
Fold Neo-Tex® in
half to slide into
“C” Channels
24 (33” x 10”) Pieces
of Neo-Tex® Folded
in half
24 (33” x 10”) Pieces of
Neo-Tex® Folded in
half
24 (33” x 8”) Pieces of
Neo-Tex® Folded in
half
