QUICKFIRE® WRAP AROUND
42 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Utility Connections for Boom Movement
Pneumatic (Air) Connections Air Panel

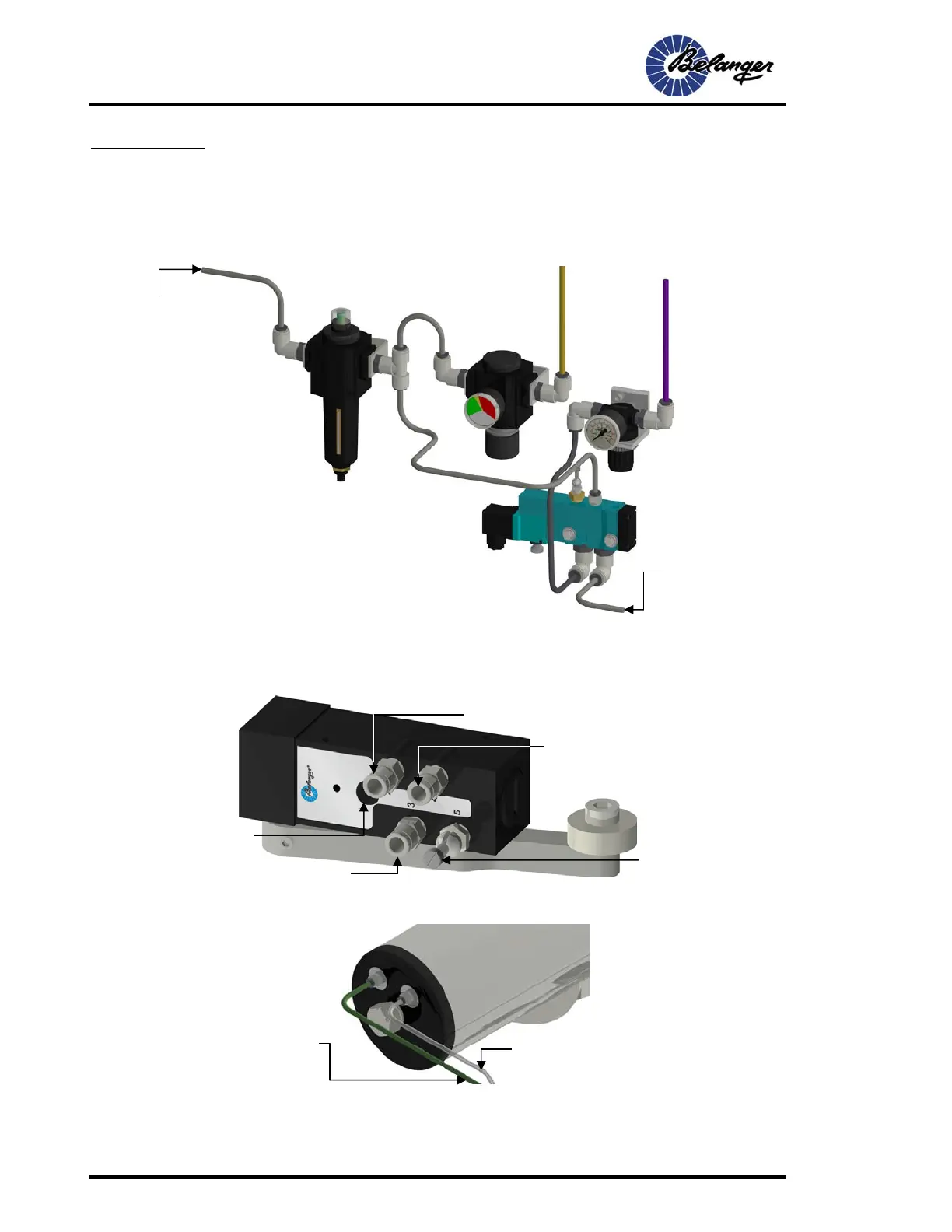

1) Connect 1/4” airline to the air panel as shown below.
2) Run 1/4” airline from the Air Panel to port #3 on the QuickFire® Wrap limit switch. Driver side uses
GREEN airline, passenger side used ORANGE airline.
3) Run 1/4” airline from the Air Panel to the Air-Over-Oil reservoir. Driver side and passenger side
both use GRAY airline. Pneumatic (Air) Connections Limit Switch
Pneumatic (Air) Connections Boom
Airline colors stated are suggestions to aid repairs and trouble-shooting.
Boom Pressure
Feed to Outside Air-
Over-Oil Reservoir
(Purple or Red)
Head Pressure
Feed to Limit
Switch Port #3
(Yellow)
Main air supply
90-PSI minimum
120-PSI maximum
Feed to Rear of Boom (Natural)
Air Dump (Port #1)
Adjustment Needle Valve
Feed to Rear of Boom (Green)
Feed to Limit Switch Port #4 (Green)
Feed to Limit Switch Port #2 (Natural)
Feed to Inside Air-
Over-Oil Reservoir
(Gray)
Feed from Large Regulator on the Air Panel (Yellow)
