QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 23
Installation
Installing Boom Components

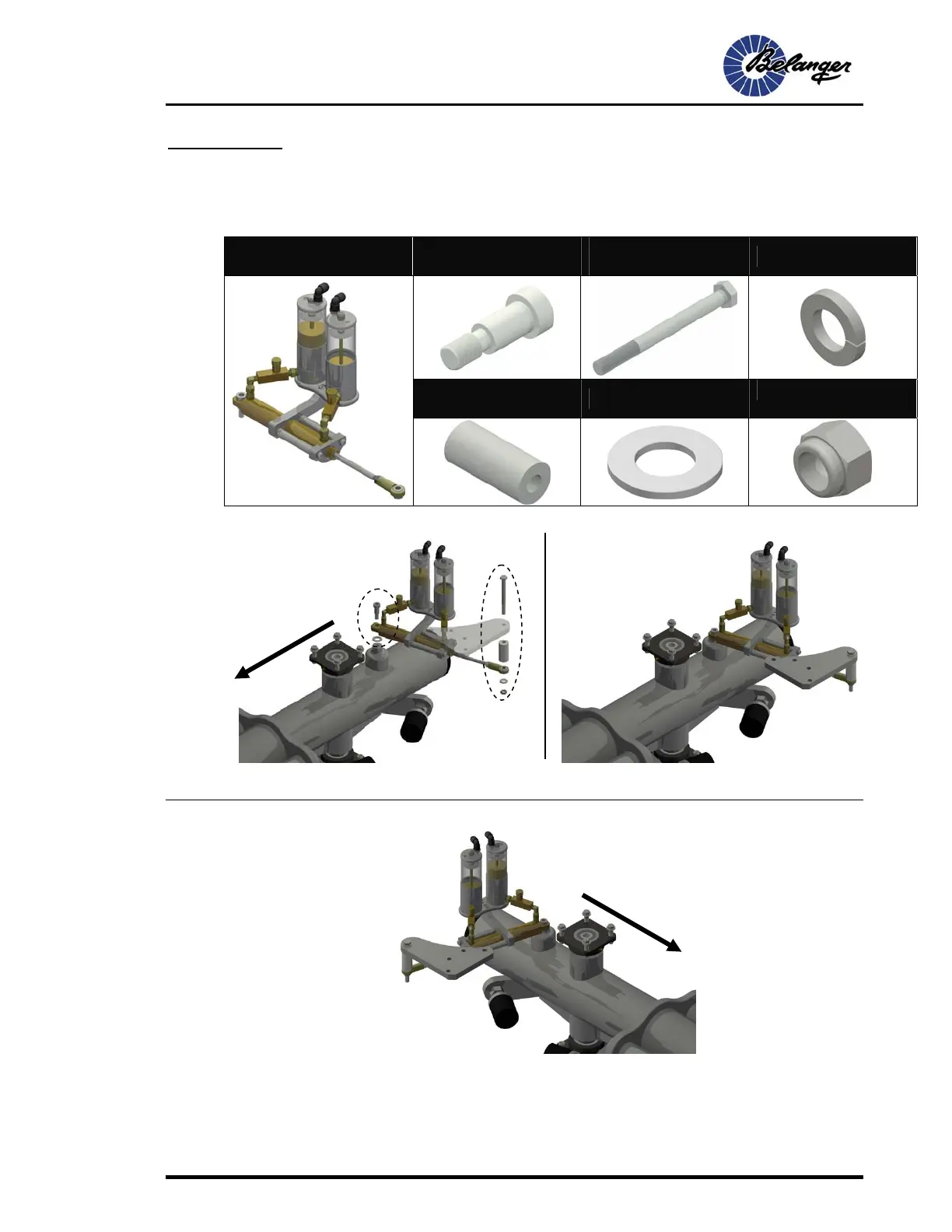

9) Locate the parts and fasteners shown below.
Air Over Oil Assembly 5/8 x 1” Shoulder Bolt
1/2-13 x 5” Shoulder
Bolt
1/2” Lock-Washer
Cylinder Link (2-3/4”
long)
5/8” Plastic Washer
1/2” Nylock™ Nut
10) Secure the above parts to the rear of the driver side Boom as shown below.
1/2-13 x 5”
5/8 x 1” Shoulder Bolt
and 5/8” Plastic Washer
Passenger Side
Vehicle
Travel
Vehicle
Travel
To Next Page
